Radioddity CB-27 CB Radio Mobile Radio | AM/FM | 4W | 40/80 Channel [DISCONTINUED]
Radioddity CB-27 CB Radio Mobile Radio | AM/FM | 4W | 40/80 Channel [DISCONTINUED]
Radioddity CB-27 40-Channel CB Mobile Radio
Ultra-compact, perfect for a long days road trip.
No license required, easy to operate
It accesses a 29 level squelch system and better sensitivity chip, is a great signal receiver and allows to get a clearer sound during communication.
You can active the Instance emergency channel 9 and channel 19 by just pressing the EMG button to switch.
It has a built-in speaker.

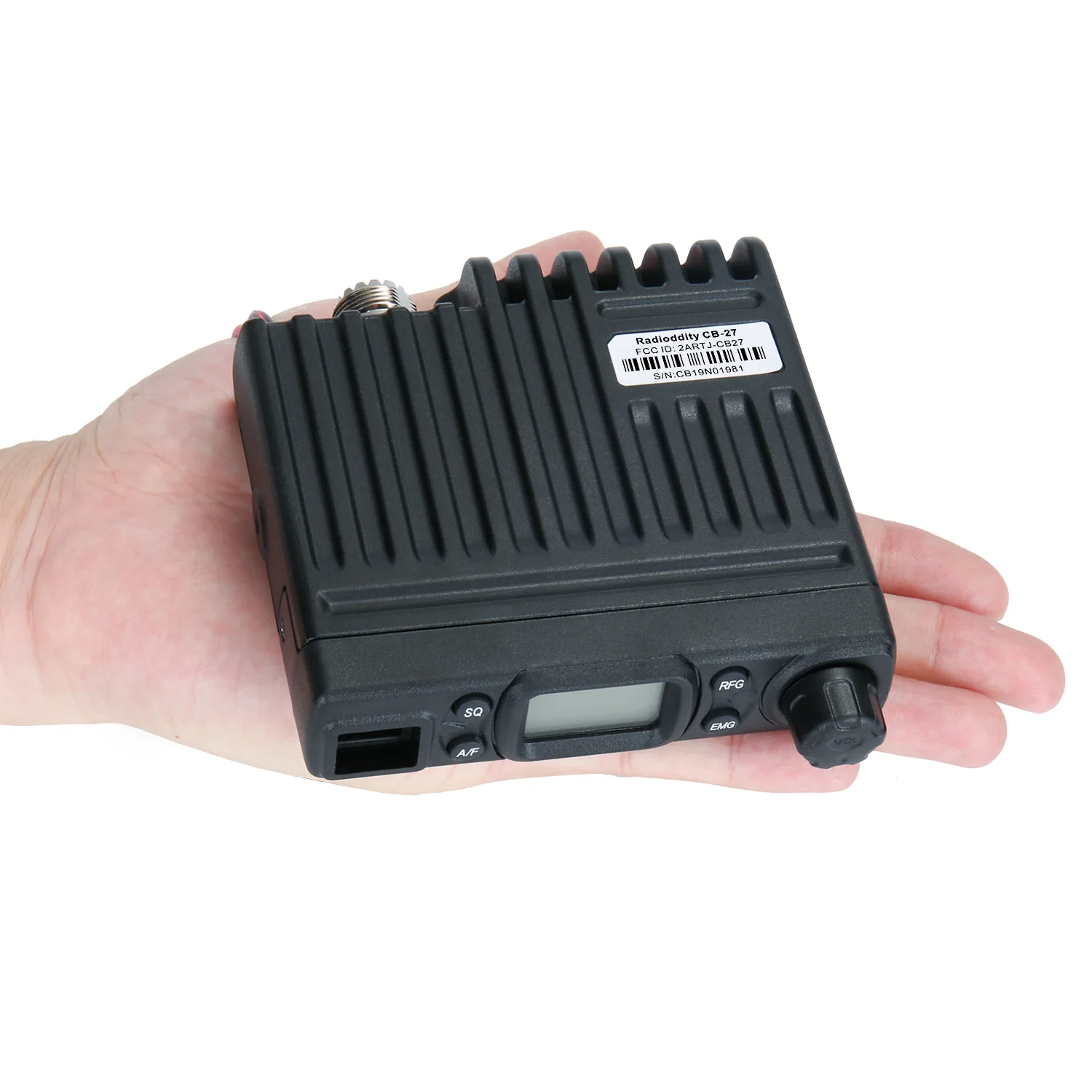

Tiny and portable
If you are looking for a small, convenient size radio, CB-27 would be a perfect choice for you.

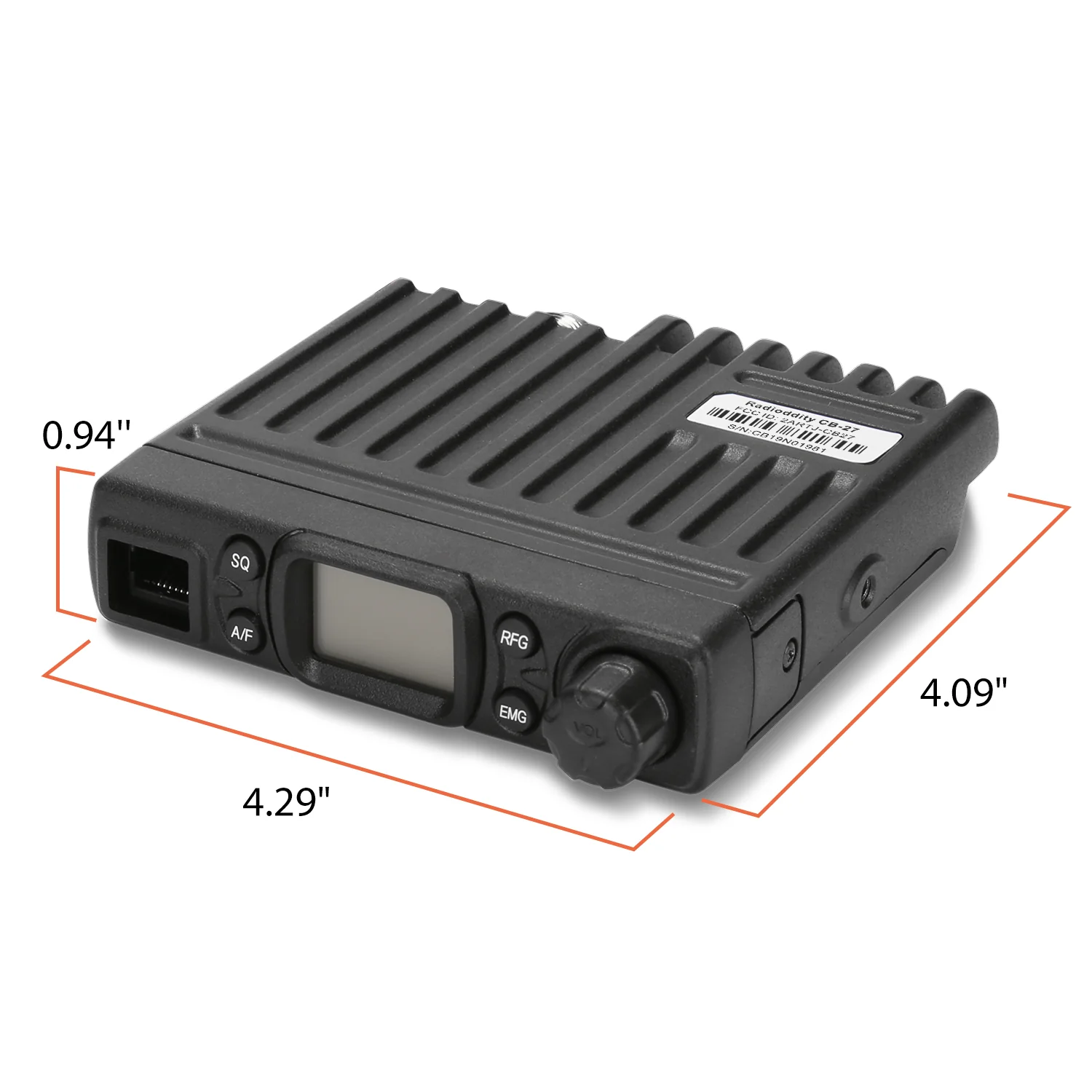

It comes with a palm-size body, 4.29" x 4.09" x 0.94", it weighs only 432g. Easy to carry in hand or bags.
It occupies little space, is easily installed in vehicles (especially truck or bus).
The radio is held in a universal mounting bracket by two thumbscrews which allow for adjustment at a convenient angle.

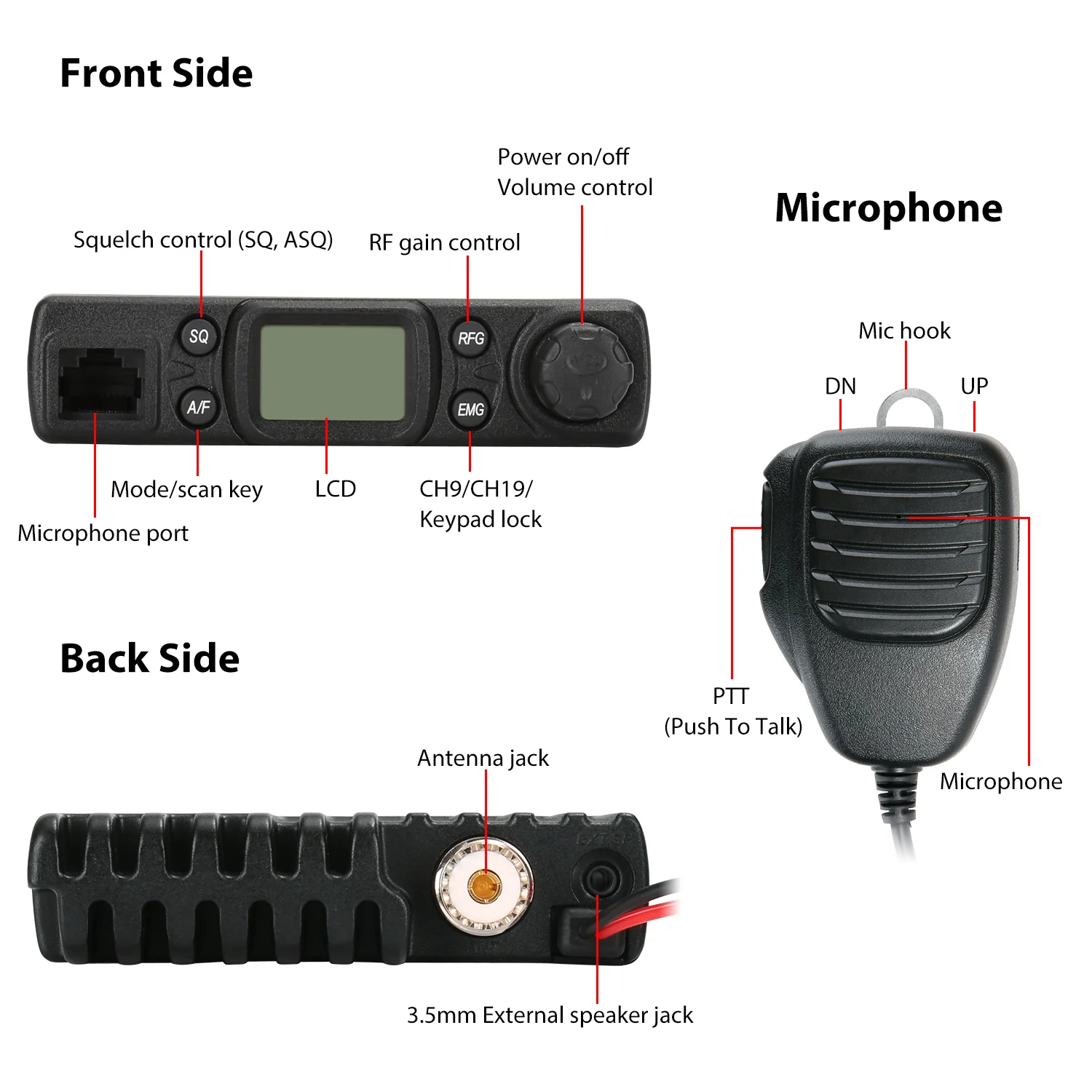

Feature
Instant Channel 9/19
AM Station / AM & FM Station
Squelch Control
RF Gain Control
Keyboard Lock
Memory Scan

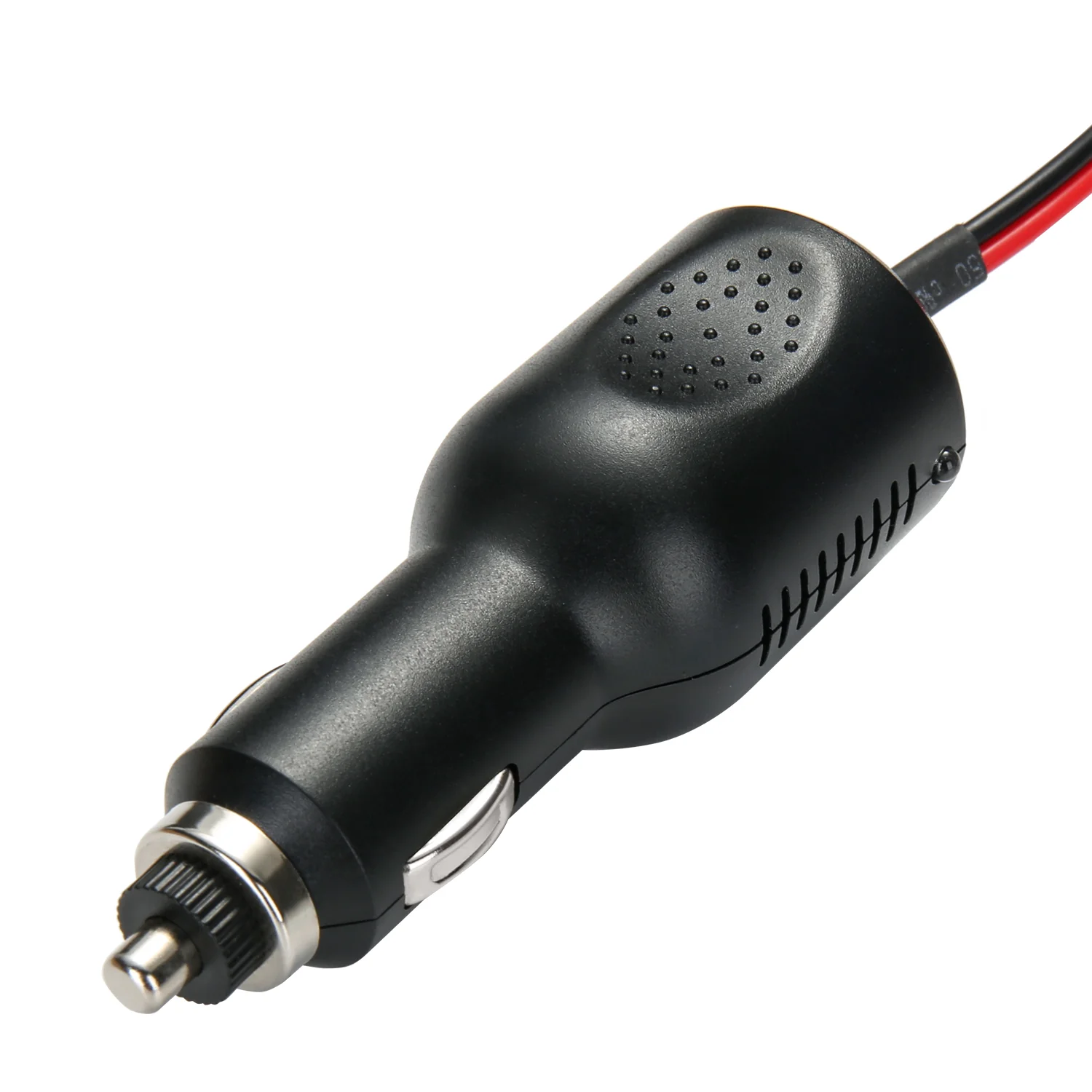

Car Charger Power Supply
Note: Before operating the radio, need to purchase an antenna, which can match the type SO-239 socket.
|
|
RF Gain Control It is used to adjust your receive sensitivity. Normally you want this control turned far to the right, so you can receive the farthest signals possible. |
|
|
Flexible Squelch Control Complete with 9 levels Automatic Squelch (ASQ) and 29 levels Manual Squelch, make this radio more flexible to get rid of the background static. |
|
|
CH9/19 Emergency Channel An ideal radio for emergency communications or for traveler assistance. Priority should be given to calls for help, in particular, Channel 9/Channel 19 should. |
|
|
Work with External Speaker Connect the amplifier into external speaker jack, gaining a louder sound at loud vehicles and job sites where hearing radio communication is critical. |
Specifications
Modulation Mode: AM (SKU: 28-120-518A) & AM/FM (SKU: 28-120-518E)
Frequency: 26.965-27.405 MHz
Frequency Tolerance: ±5.0 ppm
Frequency Control: PLL Synthesizer
Input Voltage: 13.8V, 1.5A
Power consumption: Transmit: <2A
Receive: Squelched 0.3A
Operating Temperature Range: -20°C to +50°C
Antenna Impedance: 50Ω
Antenna Connector: 27MHz, SO-239
Mode of Operation: Simplex
External Speaker Jack: 3.5mm
Dimensions: 109mm x 104mm x 24mm
Weight: 432g
Question: What's the difference from the AM (SKU: 28-120-518A) and AM/FM (SKU: 28-120-518E) model?
Answer:
AM model is designed for US area or wherever else FM is illegal. The FM band is locked and you may not switch the frequency band.
AM/FM model is designed for all areas besides the US. You can switch the frequency band standard (norm) as you need. There are 9 different frequency band (US, DE, UK, IN, PL, I, EU, I2 and CE) for you to select.
Note: It would violate FCC rules if you use other bands of this model in US.
Below is the US and DE table, for others, please check the User Manual. CLICK HERE to download.
What's in the box?
1 x Radioddity CB-27
1 x Removable Microphone
1 x Bracket (with 2 screws)
1 x Spare Fuse (F5A220V)
4 x Tooth Washers
4 x Mounting Screws
1 x User Manual
Original: $59.99
-70%$59.99
$18.00Product Information
