Radioddity CB-500 CB Radio | 4W | AM FM | Noise Reduction | 7 Color Backlit | NOAA
Radioddity CB-500 CB Radio | 4W | AM FM | Noise Reduction | 7 Color Backlit | NOAA
Upgrade your mobile communication game with the Radioddity CB-500 Mobile CB Radio Transceiver! 📻 This sleek and powerful transceiver is packed with features designed to enhance your on-the-go communication experience.
Stay Powered On the Go
Keep your CB radio powered up on the road with the car charger, ensuring continuous communication during long drives or off-road adventures.
Vibrant 7-Color Backlight
Customize your CB radio display with a 7-color backlight, adding personality to your dashboard while enhancing visibility in any lighting conditions.
Hands-Free Functionality
Keep your hands on the wheel and focus on the road while enjoying seamless communication with our hands-free function.
Weather Monitoring (WX)
Stay informed about changing weather conditions, providing access to real-time weather updates and alerts to help you plan your journey accordingly.
CH 9/CH 19
Access emergency channels CH 9 and CH 19 easily, ensuring you're always connected and prepared for unexpected situations while on the road or off-grid.
Talkback
Enjoy clear and crisp communication as you can hear your own voice during transmission with our talkback feature.
CTCSS/DCS
Benefit from 38 CTCSS and 104 DCS codes, enhancing communication privacy and clarity by filtering out unwanted signals and interference.
12V/24V Support
The radio easily supports both 12 and 24-volt voltage systems, making it compatible with various vehicles.
Specifications
GENERAL:
Modulation Mode: AM/FM
Frequency Range: 26.565-27.99125MHz
Frequency Tolerance: ± 5.0ppm
Input Voltage: 12/24V

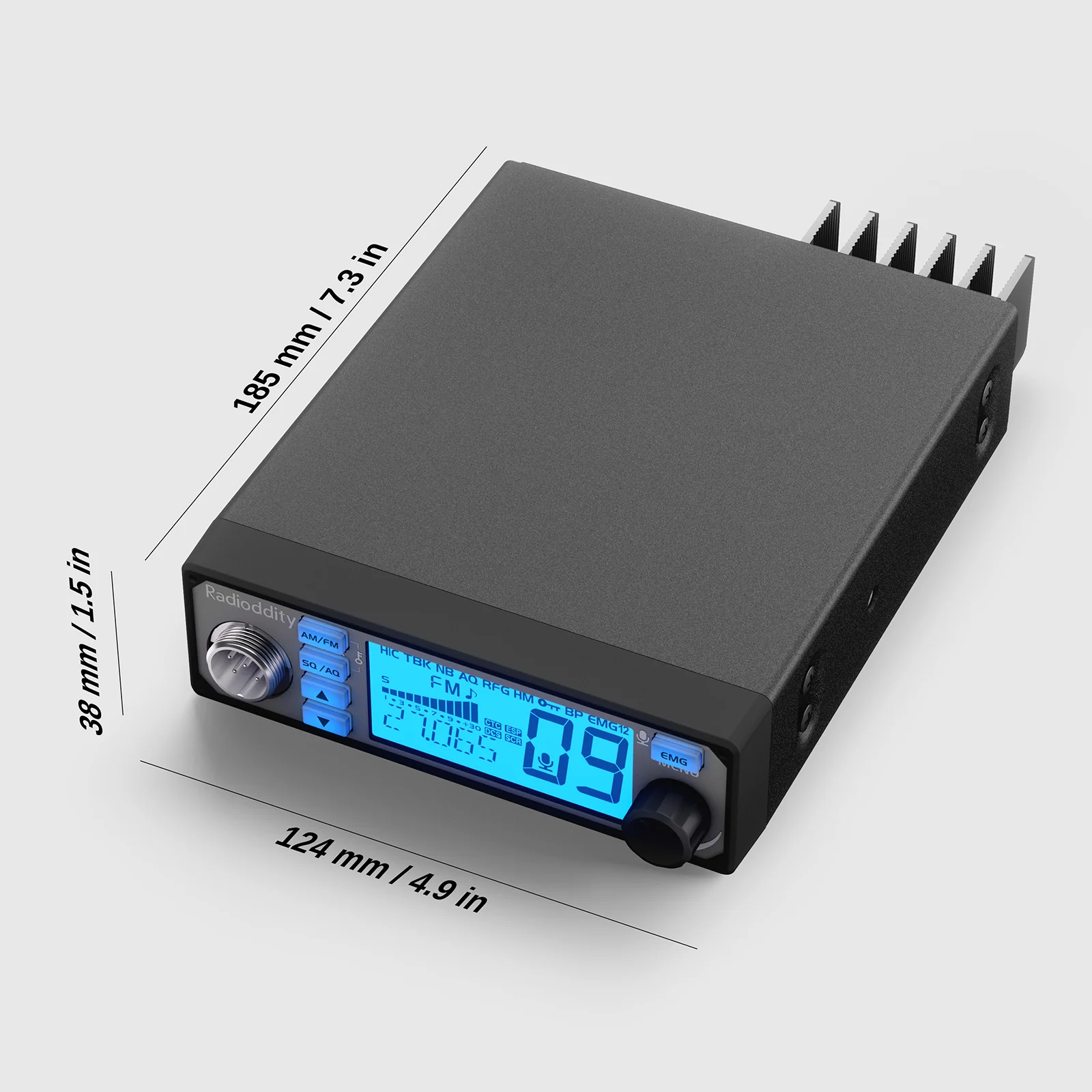

Dimensions: 185 x 124 x 38 mm / 7.3 x 4.9 x 1.5 in
Weight: 620 g / 1.4 lbs
Operating Temperature Range: -20℃ to +50℃
Current Drain:
Transmit: 3A MAX
Receive: Squelched 0.3A
VOL Max: 0.7A

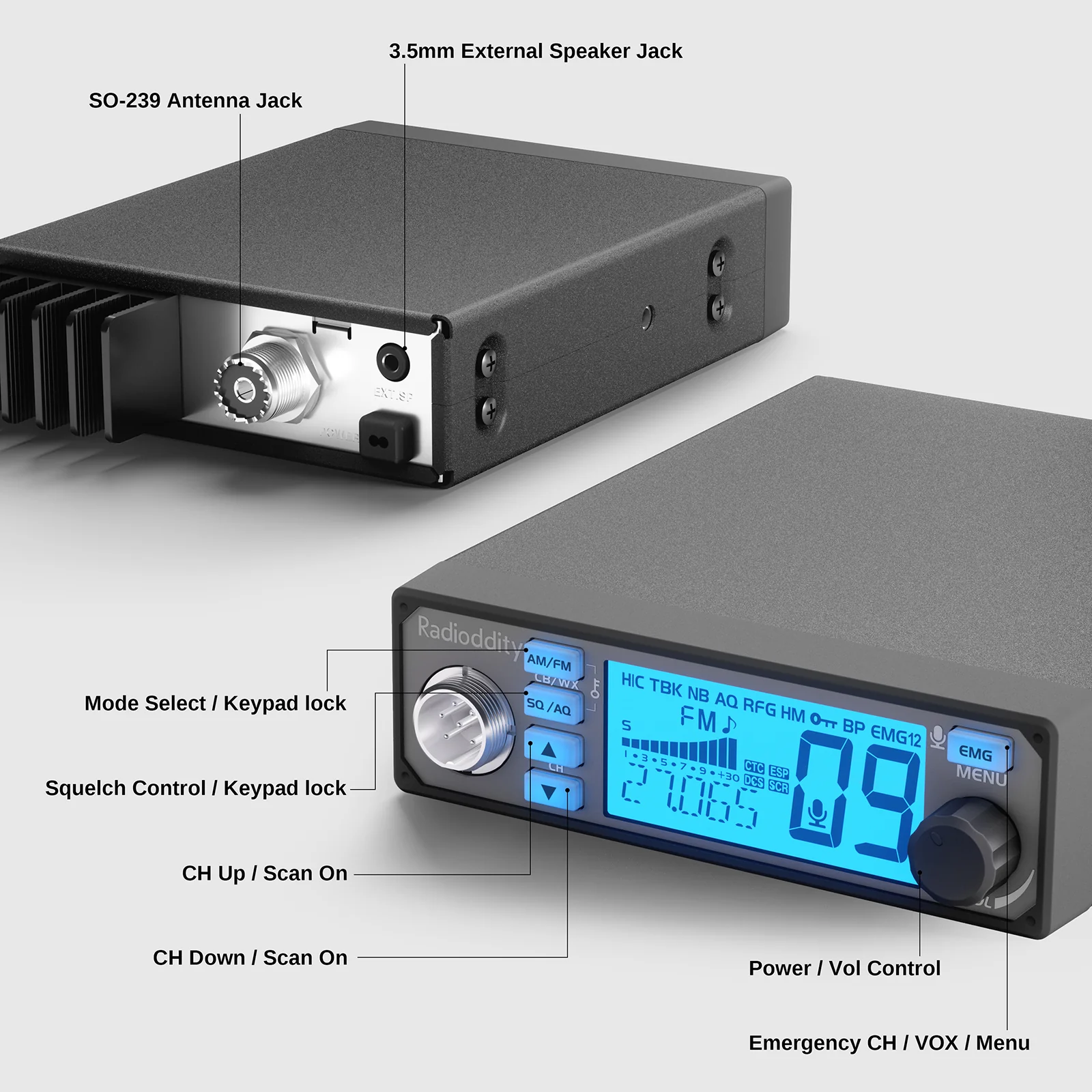

Antenna Connector: UHF, SO-239
TRANSMITTER:
Power Output: 4 Watts FM/AM
Transmission Interference: Inferior to 4nW
Frequency Response: 300-3000 Hz
Modulated Signal Distortion: Inferior to 5%
Output Impedance: 50 ohms
RECEIVER:
Sensitivity: Less than 1uV for 10dB(S+N)/N
Image Rejection: 70dB
Adjacent Channel Rejection: 60dB
IF Frequencies:
1st 10.695 MHz
2nd 455 KHz
Automatic Gain Control(AGC):
Less than 10dB change in audio
Output for Inputs from 10 to 50000uV
Squelch: Less than 1uV
Audio Output Power: 2 Watts at 8Ω, less than 10% distortion
Frequency Response: 300-3000 Hz
Note: This CB radio can be used in US, EU and UK. The EU on the screen do not represent European standards and do not signify any meaning.
Recommended Accessories (not included in the package)
1. Radioddity CB External Speaker
2. Xiegu GY03 External Speaker
3. Radioddity RA-M5 Antenna Magnet Mount
4. Radioddity CB-514 CB Antenna
5. Radioddity RS58 External Speaker

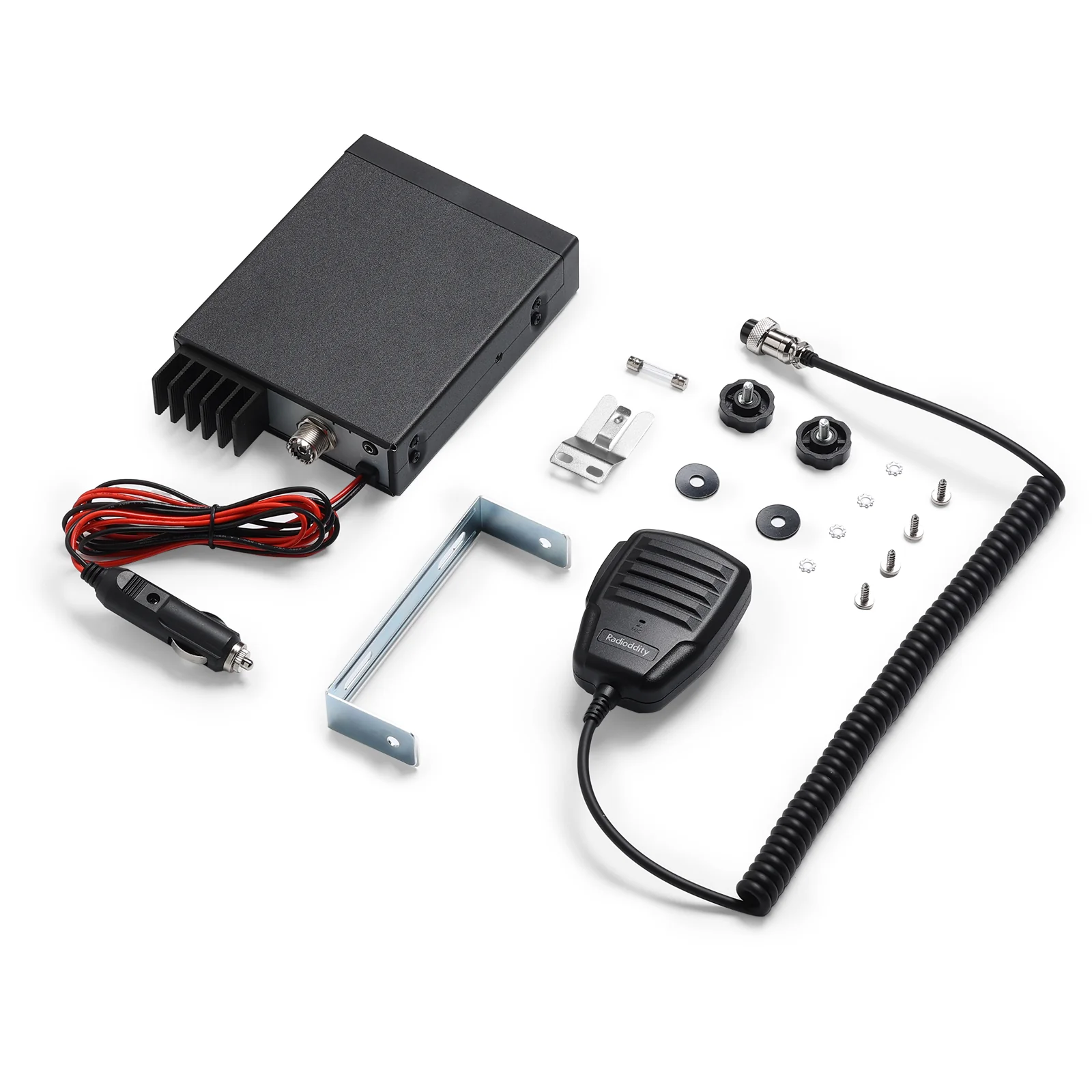

What’s in the box?
1 x CB-500 (with Car Charger)
1 x Radio Bracket (with 2 Screws)
2 x Pads
1 x Handheld Microphone
1 x Microphone Bracket
4 x Mounting Screw
4 x Gasket
1 x Spare Fuse (F5A220V)
1 x User Manual
