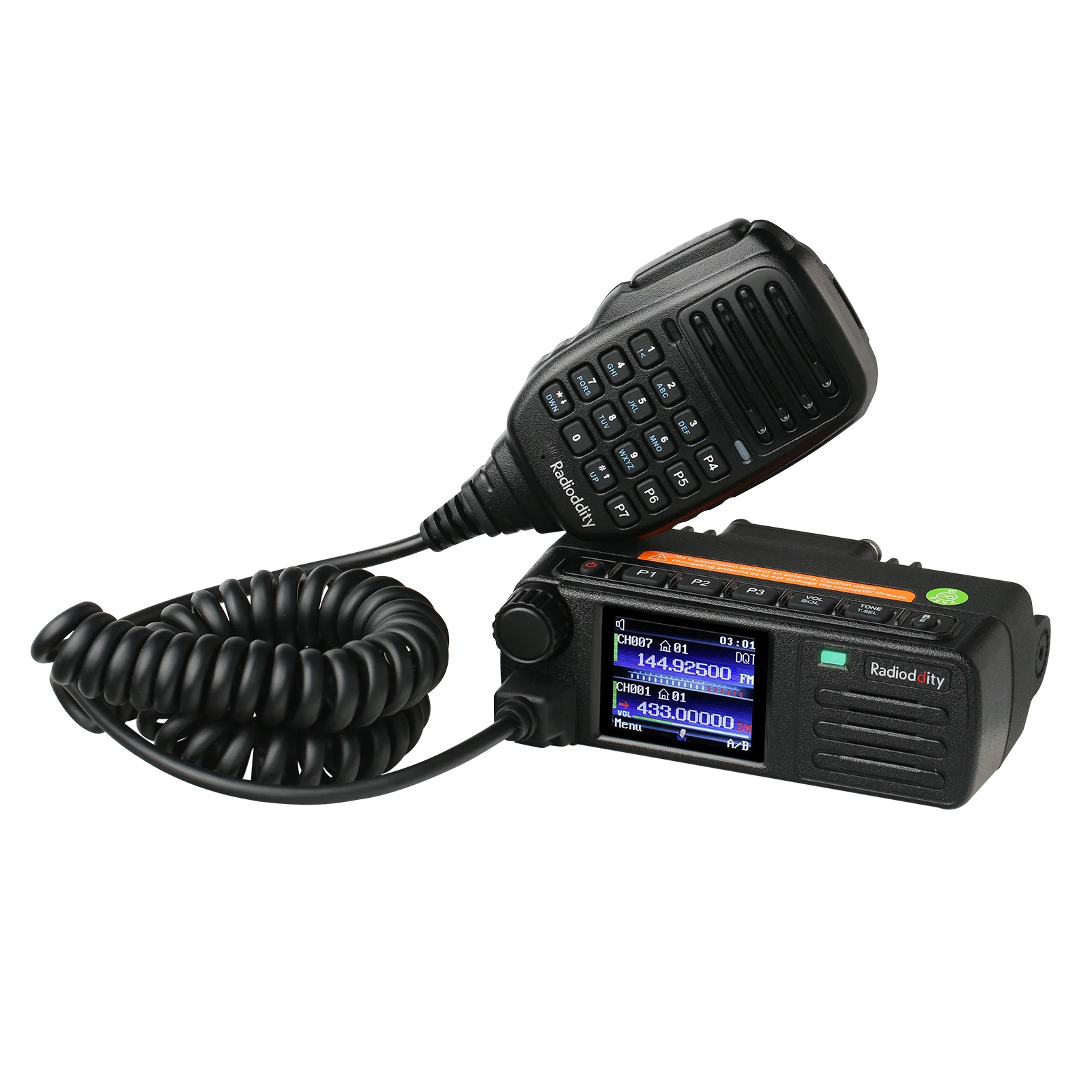

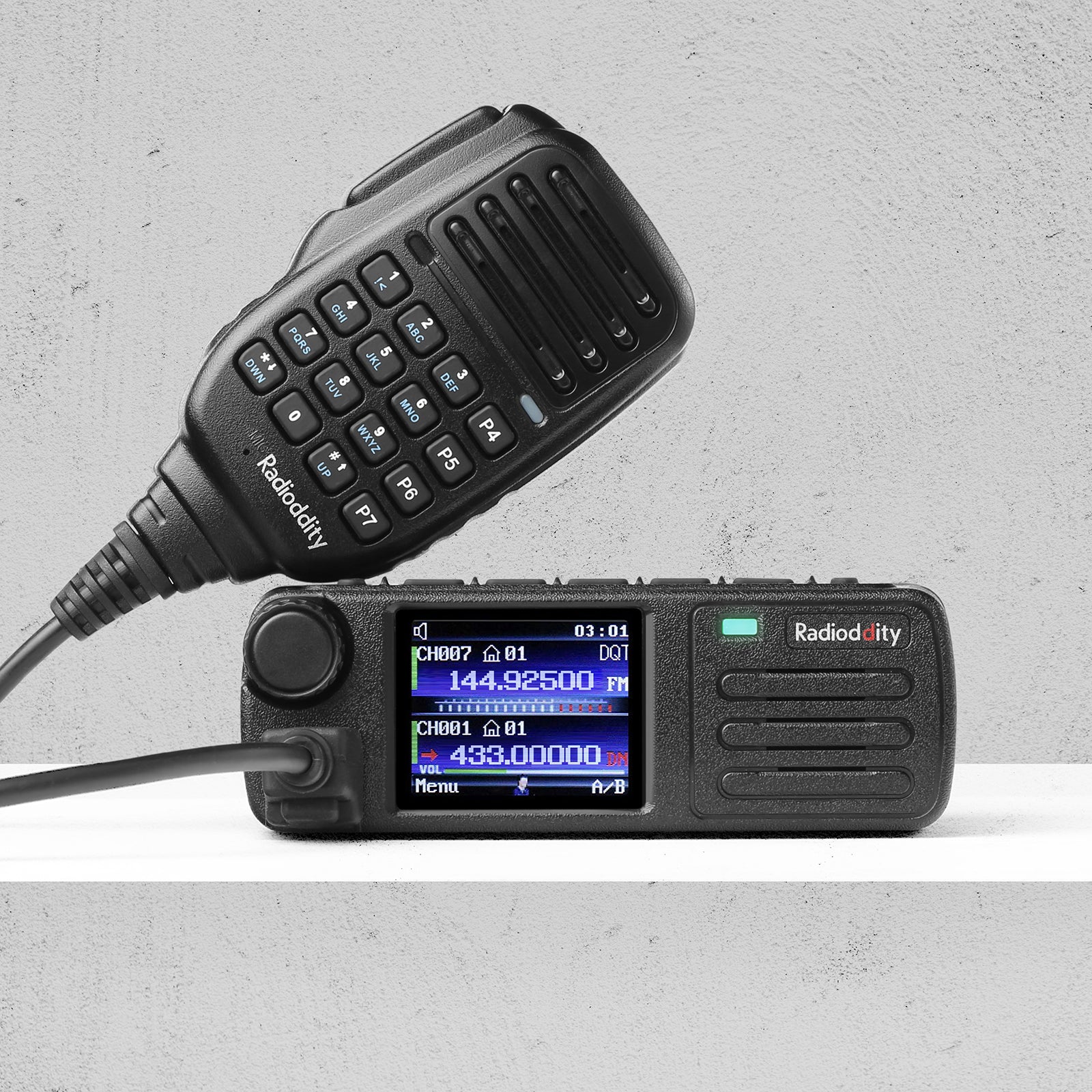

Radioddity DB25-D Mini Mobile Radio | 20W | Analog & Digital DMR | VHF & UHF Dual Band | GPS / APRS | SMS | Color Screen | 500000 Contacts

As one of the most compact DMR mobiles in the market, the Radioddity DB25-D is about the size of a handheld radio. Small but powerful would be the perfect description for this palm size mobile radio.

The DB25-D supports both digital and analog mode operation on VHF/UHF frequencies. It features 20W high power output, 500k DMR contacts storage and 7 customizable function keys. What’s more, DB25-D comes with GPS function, supporting APRS, being your ideal choice for off-road and outdoor use.
　

APRS enables your radio to send and receive packets of GEO-information include text messages, weather information, and GPS data. Your friends can track you easily when you’re traveling in the backcountry. CLICK HERE to learn about how to set up APRS.	The Radioddity DB25-D comes with a microphone option, which can be set according to different situations in order to improve your TX audio quality.	Knowing the fact that more and more people are migrating to DMR operation, the DB25-D supports larger digital contacts storage while providing 198 hours of audio recording and with its dual mode capability, making migration even easier.	The DB25D has a total of 7 customizable function keys that can activate the preset functions. Each key has Long / Short press option, making up a total of 14 different functions being available with a single keypress.

Feature Functions
 - VFO, SMS, TOT, GPS, APRS, Alarm Mode
 - 198 Hours of Recording
 - 9 Level Squelch
 - DMR Tier 2 (for dual timeslot as required by repeaters)
 - Busy Channel Lock-out, Automatic Keypad Lock
 - IP54 Waterproof

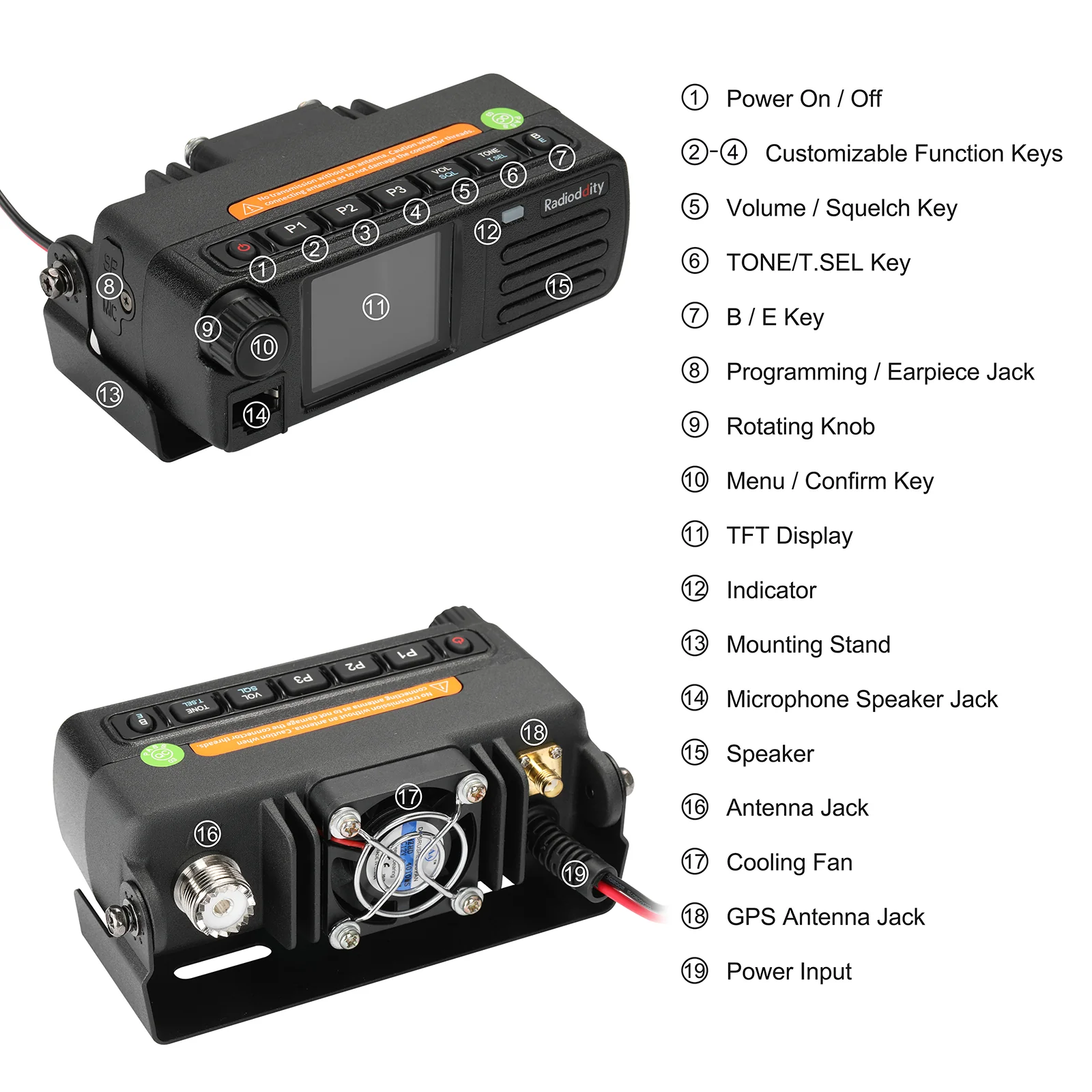

 - Color Screen, Cooling Fan
 - 7 Customizeable function Keys
 - Programmable Microphone Gain

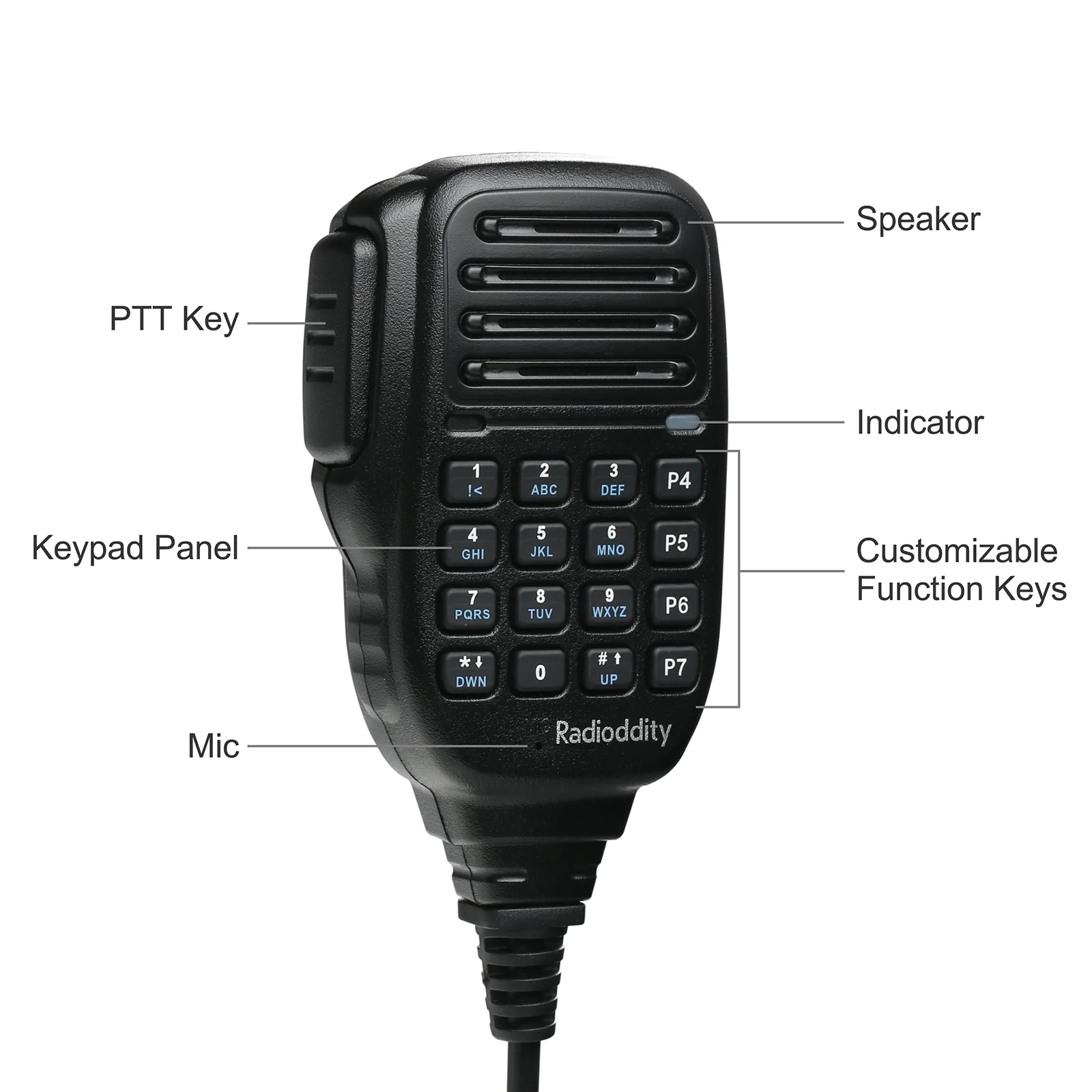

 - Speaker Mic with magnet for hanging
　

Radioddity DB25-D

Radioddity DB40-D

https://www.radioddity.com/products/radioddity-db25d

https://www.radioddity.com/products/radioddity-db40-d

Frequency

Power Output

Screen

DMR ID

GPS Type

Customized Keys

Bluetooth Earpiece

Bluetooth PTT

Same frequecy repeater

SFR

Cross-band repeater

FCC ID

CE ID

Channel + Zone

Dual Watch

Beep Tone

Squelch Level

VOX

CTCSS & DCS

DTMF

STE-Squelch Tail Elimination

Power On Message

Repeater Tone

SMS

Time Slot Tier 1/2

VFO

Analog APRS

Digital APRS

Talker Alias

136-174/400-480@@10W/ 20W@@1.8" Color@@500K@@Passive@@7@@X@@X@@X@@X@@X@@2AN62-DB25D@@√@@4000@@√@@√@@√@@√@@√@@√@@√@@√@@√@@√@@√@@√@@√@@√@@√@@

136-174/400-480@@20W/ 40W@@2.4" Color@@500k@@Active@@10@@√@@√@@√@@√@@√@@VO6CDR-700UV@@√@@4000@@√@@√@@√@@√@@√@@√@@√@@ √@@√@@√@@√@@√@@√@@√@@√

Specifications
Frequency: VHF 136-174MHz | UHF 400-480MHz
Mode: Analog + DMR (Tier 2)
Power Output: 20W | 5W
Channels: 4000 (ch+zone)
Contact ID: 2000
DMR ID Data Base: 500,000
CTCSS/DCS: 51/108
Bandwidth: 12.5kHz/25kHz
Antenna Connector: SL16 / PL-Type
Compatibility: compatible with Mototrbo
Screen: 1.77〃TFT screen
Size: 4.8 x 2.6 x 1.7in | 12 x 6.5 x 4.2cm
Weight: 2lb | 0.9kg
Antenna Port: SO-239
Need Antenna with Port: PL-259
　

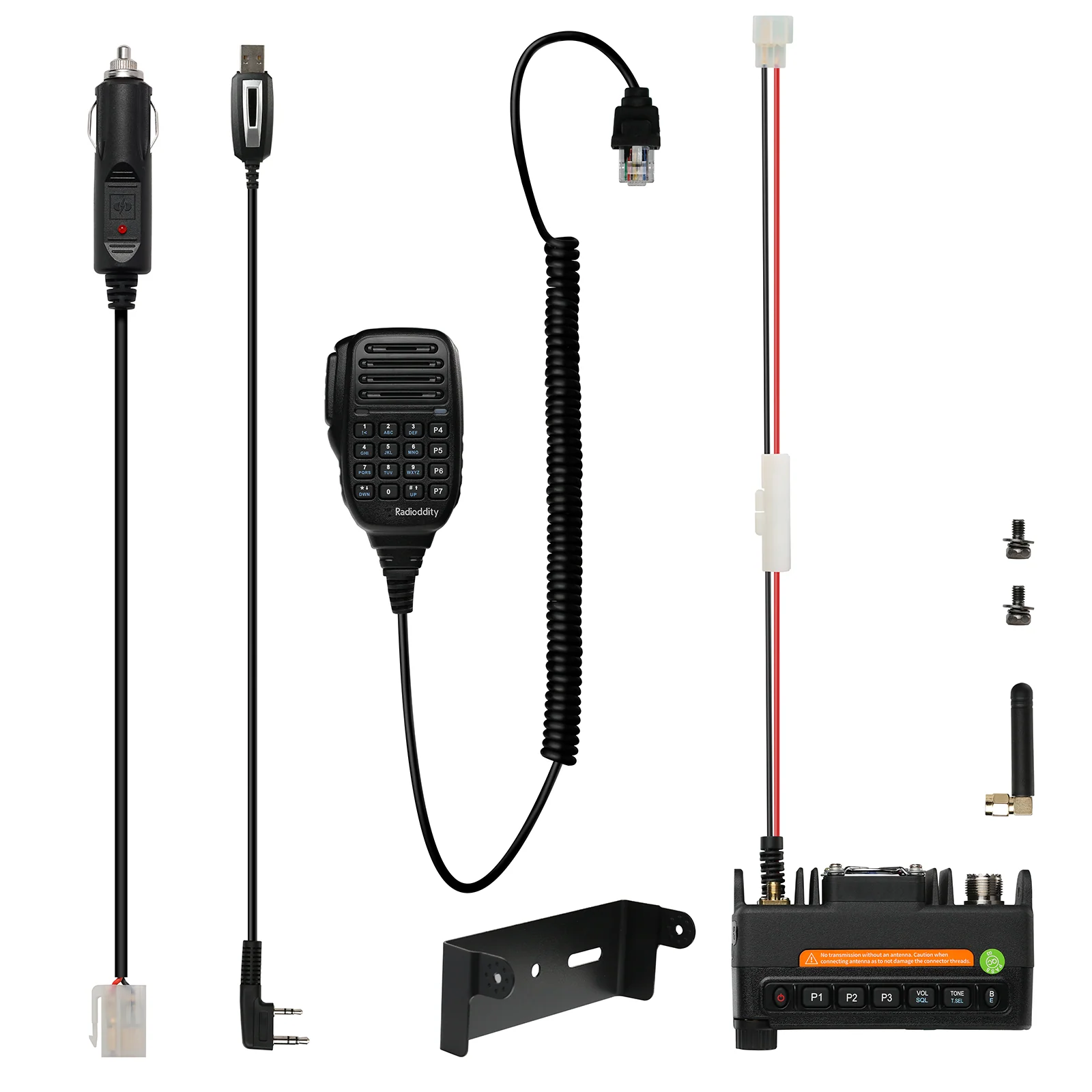

What's in the box
1 x Radioddity DB25-D Mobile Radio
1 x Mini GPS Antenna
1 x Programming Cable
1 x Power Cable (connected with a car adapter)
1 x Mounting Bracket (with 2 screws)
2 x Mounting Screws
1 x Speaker Mic
