Radioddity HF-009 Portable HF Antenna | 6-60M | 5-50MHZ | SWR 1.-1.5 | Quick-Tuning | Weatherproof Build
Radioddity HF-009 Portable HF Antenna | 6-60M | 5-50MHZ | SWR 1.-1.5 | Quick-Tuning | Weatherproof Build
Unlock the full potential of your radio setup with the Radioddity HF-009 vertical antenna. Covering 60m to 6m bands (5-50MHz), this compact and portable antenna is engineered for maximum versatility wherever you go. Its innovative split design and slide-and-lock tuning system enable fast, tool-free assembly—simply unpack from the included carry bag, set it up in minutes, and you’re ready to get on the air. Whether you're activating POTA, operating in the field, camping, or handling emergency communications, the HF-009 is your reliable all-in-one HF solution.
Wide Frequency Coverage & High Performance
Covers 60m to 6m bands (5-50 MHz) with up to 100W CW / 150W PEP SSB power handling—ideal for most HF transceivers and amplifiers. Delivers a stable SWR: 1.0-1.5 across all bands for efficient signal transmission with minimal tuning hassle.
Durable & Tough Build

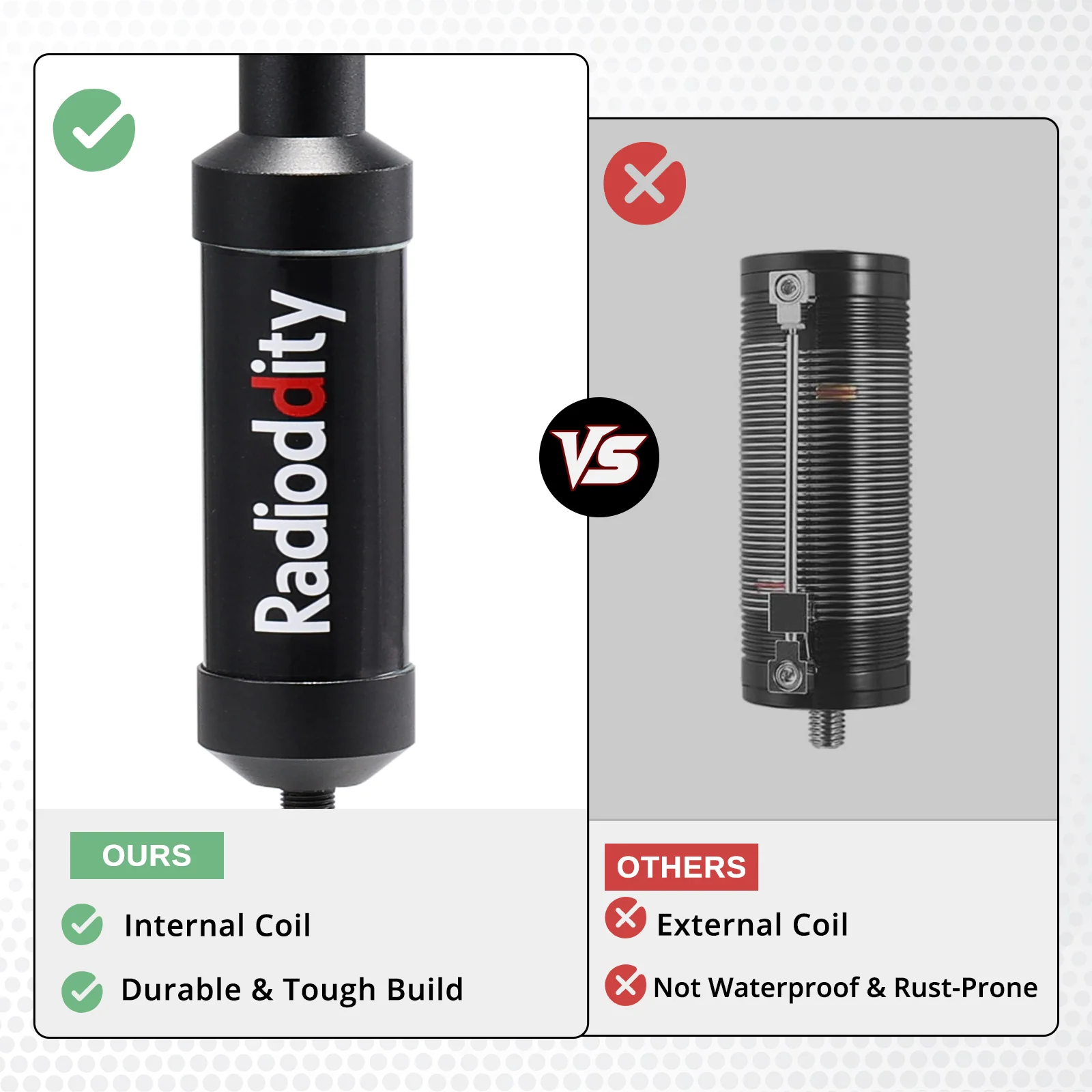

Crafted from high-grade aluminum alloy and stainless steel with anti-corrosion coating, it withstands harsh outdoor conditions (rain, dust, etc.). The internally housed tuning coil eliminates exposed parts for improved durability and waterproofing over traditional designs.
Lightweight & Field-Ready

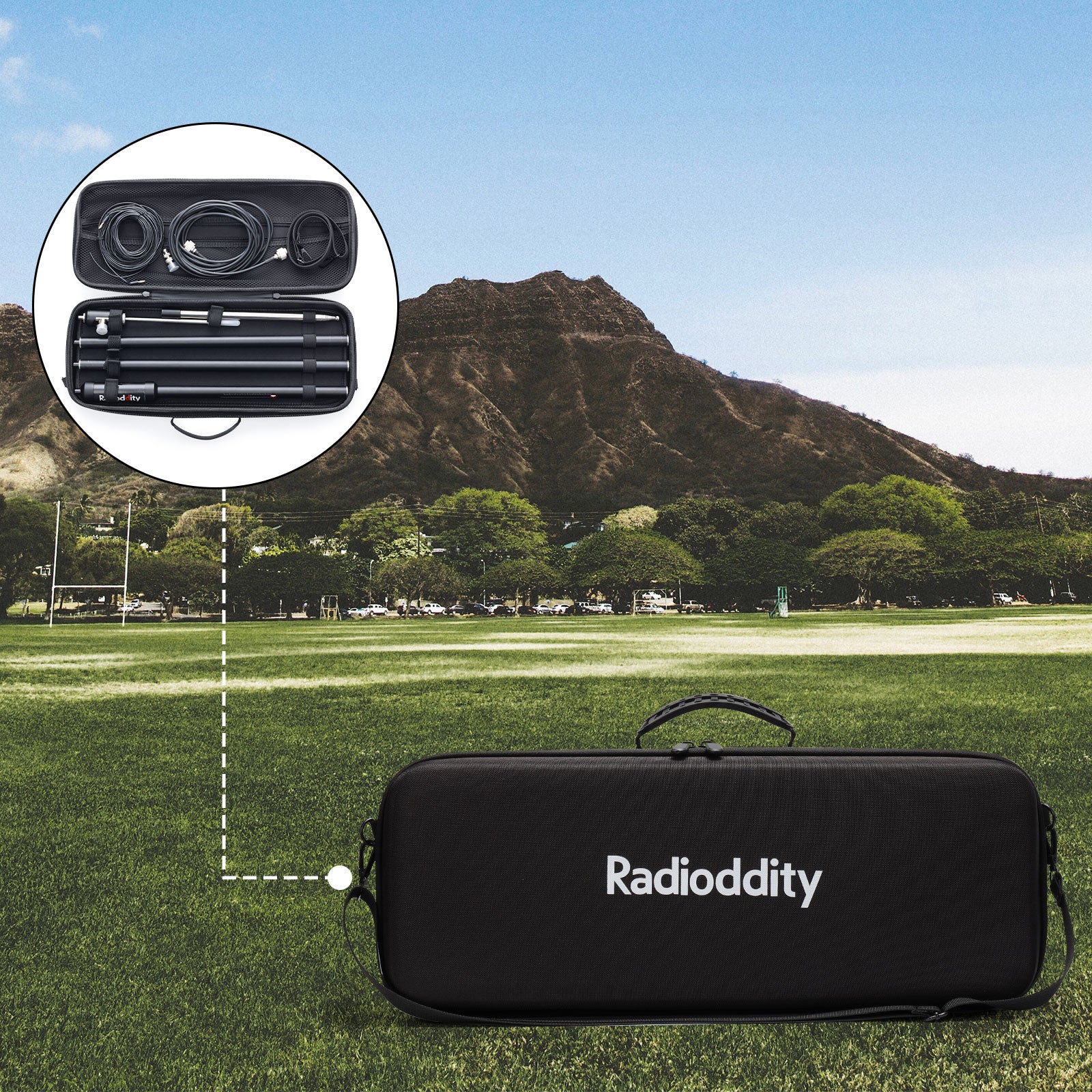

Weighing just 1kg, this collapsible, segmented antenna is built for portability. Comes with a rugged padded carry bag and reinforced velcro straps—perfect for hiking, camping, road trips, or remote field operations like POTA/SOTA.
Plug-and-Play Setup
Includes a 5-meter pure copper coax cable and BNC-m to SO239 adapter for quick setup with the HF radio. No extra gear needed—just unpack, connect, and transmit.

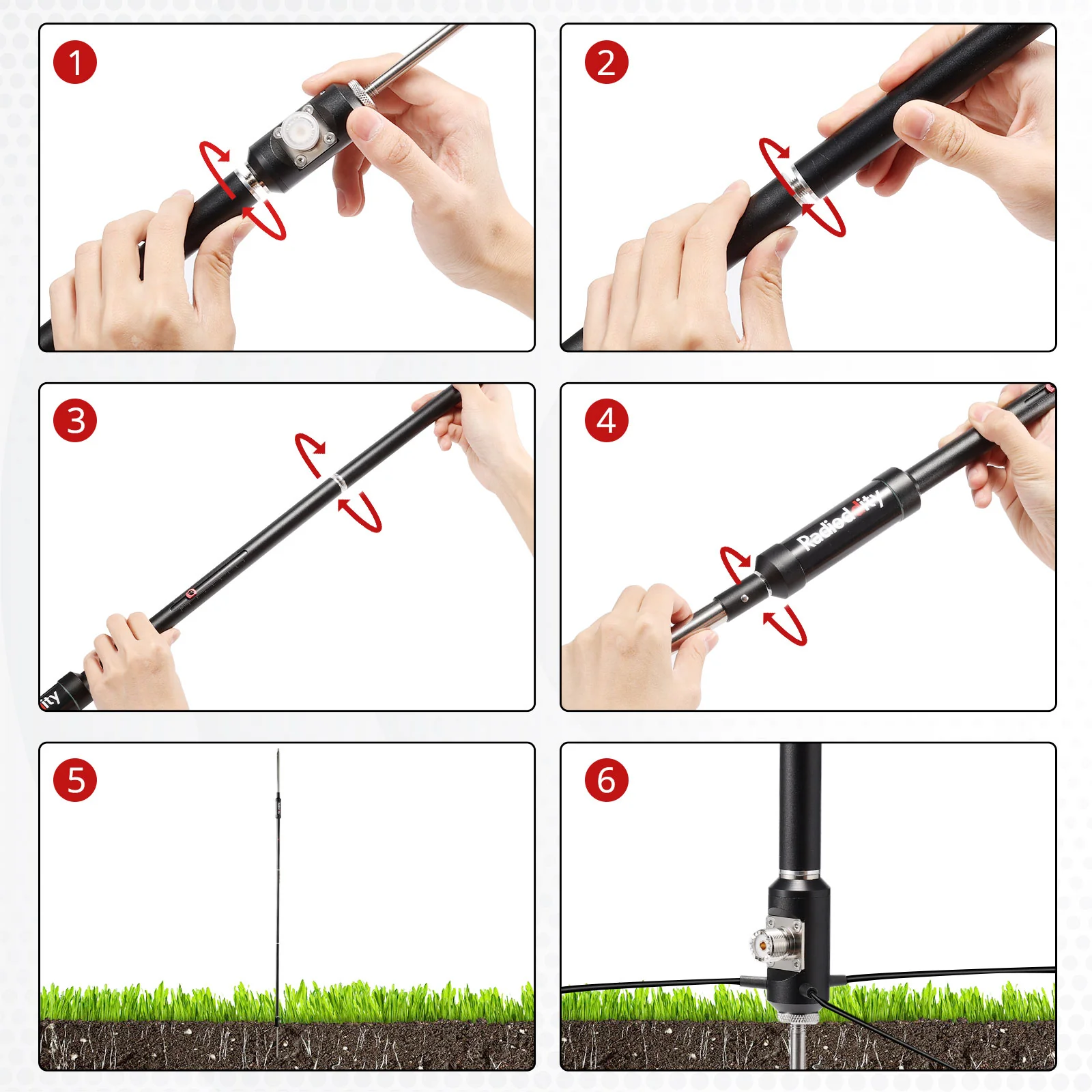

Installation Instruction
1: Connect the ground spike with pre-mounted antenna base to one extension rod.
2: Attach the second extension rod to the first, forming the mast.
3: Mount the tunable loading coil onto the top of the extension rods.
4: Secure the telescopic whip to the top of the loading coil.
5: Firmly drive the ground spike into the ground, ensuring stable placement.

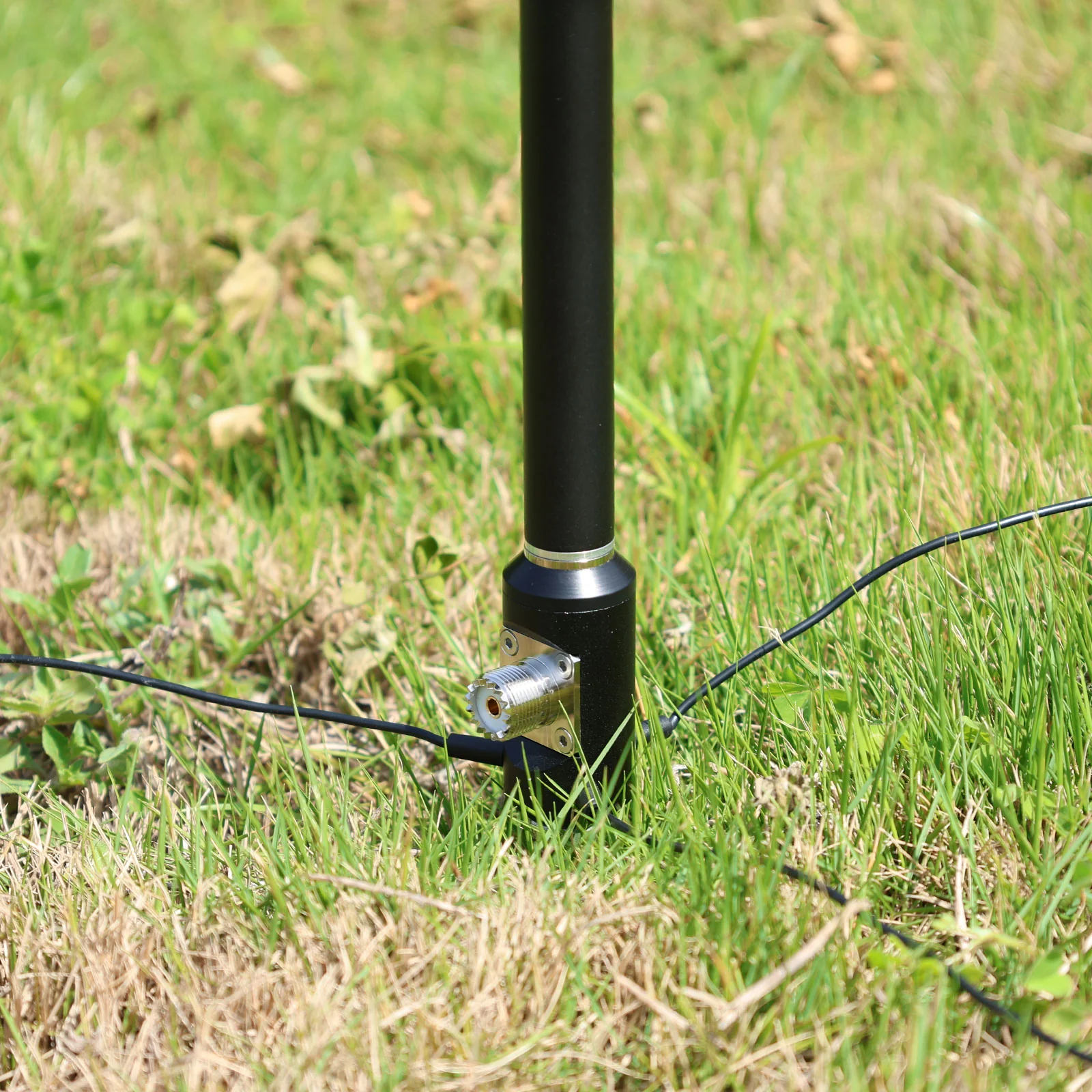

6: Connect the Radial Wires: Use the included banana plugs to attach the three ground radial wires to the corresponding holes in the antenna base.
Note: Distribute the wires as evenly as possible around the base for optimal performance in your current portable setup.
Specifications
Frequency Range: 5-50MHZ
SWR: 1-1.5
Impedance: 50 Ohm
Maximum Visible Length: 12.1ft / 3.7m
Maximum Power Rating: CW100W, SSB150W PEP
Maximum visible length: 12.1ft / 3.7m
Ground Radial Length: About 16.4ft / 5m (3 wires)
Antenna Coax-Cable Length: 16.4 ft / 5m
Total weight: 4.4 lbs / 2kg
Net weight: 2.2 lbs / 1.0kg
Size of carrying bag: 19.1" x 7.7" x 3.7" / 48.5 x 19.5 x 9.5cm
Sample SWR diagrams

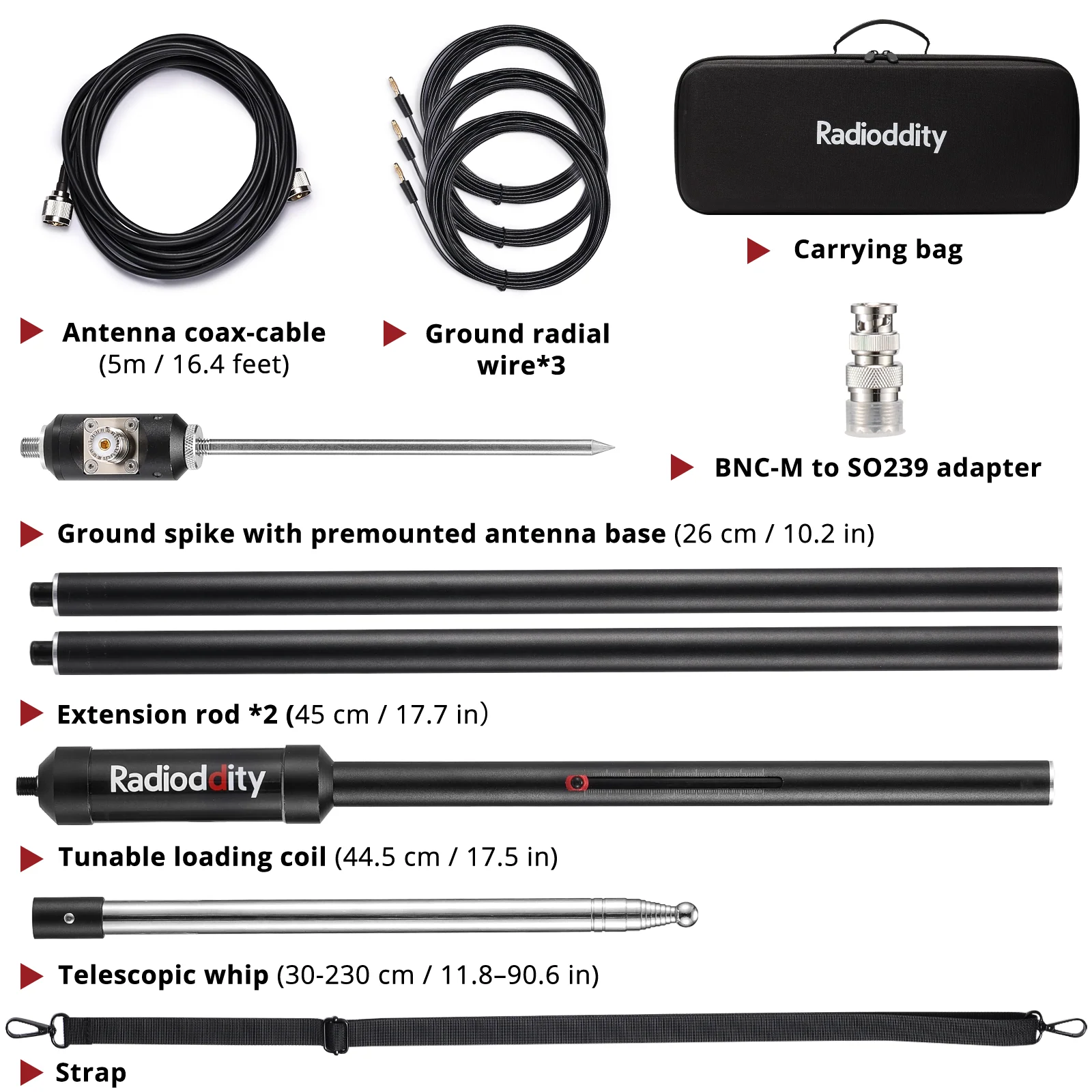

What’s in the box?
1 x Ground spike with premounted antenna base
2 x Extension rod
1 x Tunable loading coil
1 x Telescopic whip
1 x Antenna coax-cable
3 x Ground radial wire
1 x BNC-M to SO239 adapter
1 x Carrying bag with handle and shoulder strap
