Radioddity QT80 10 Meter Radio | Max 80W | FM AM SSB CW PA | TX & RX Background Noise Reduction | Microphone Gain | Dual Watch
Radioddity QT80 10 Meter Radio | Max 80W | FM AM SSB CW PA | TX & RX Background Noise Reduction | Microphone Gain | Dual Watch
Elevate your radio communication experience with the Radioddity QT80 10 Meter Radio. Designed for superior performance, this radio features an impressive 80W high power output, multiple operational modes, customizable TX & RX background noise reduction, and an ASQ function, making it our most powerful 10-meter radio. Perfect for both amateur enthusiasts and professional operators, the Radioddity QT80 stands out as a top choice for high-quality radio communication.
Dual Watch
Monitor two channels simultaneously, ensuring you never miss important transmissions while staying connected.

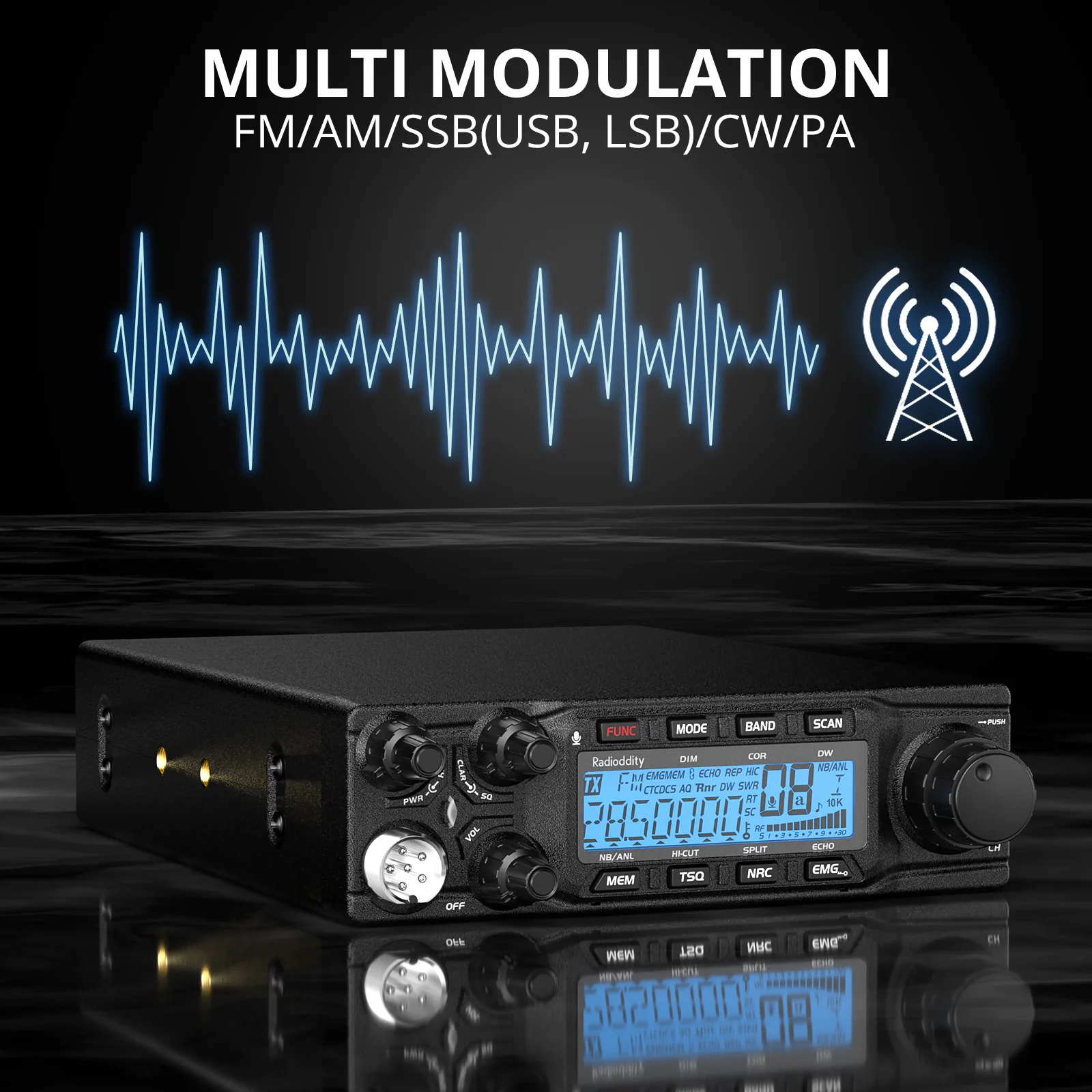

Multi Modulation
Effortlessly toggle between FM, AM, SSB (USB, LSB), CW, and PA modes, offering diverse communication options for various situations.

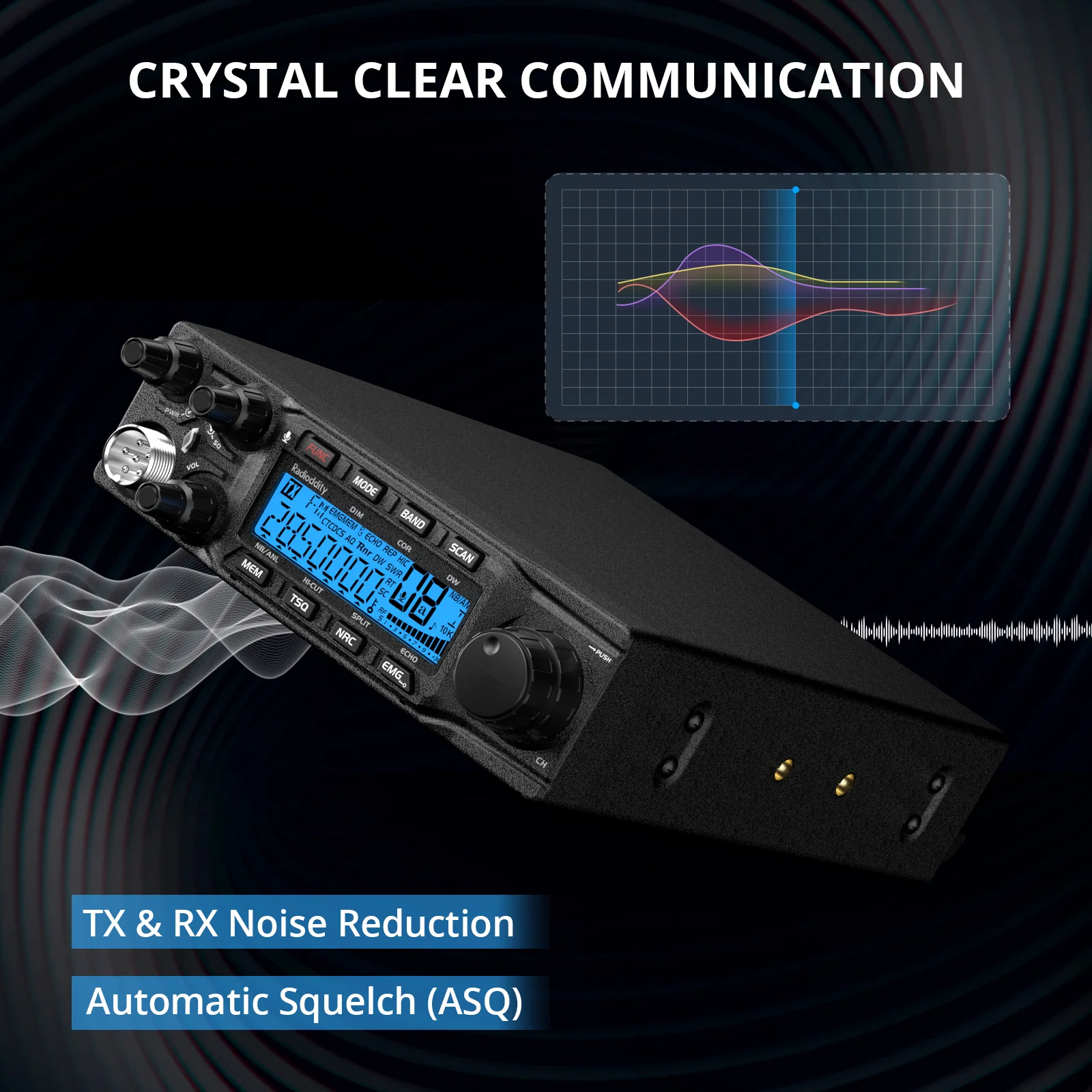

TX & RX Background Noise Reduction
Advanced noise reduction technology for both transmission and reception, providing clear and uninterrupted audio even in noisy environments.
Mic Gain
Customize microphone sensitivity for clear and precise communication, adapting to different environmental conditions.
SWR & Voltage Protection
Built-in protection mechanisms safeguard against SWR and voltage fluctuations, ensuring reliable operation in varying conditions.

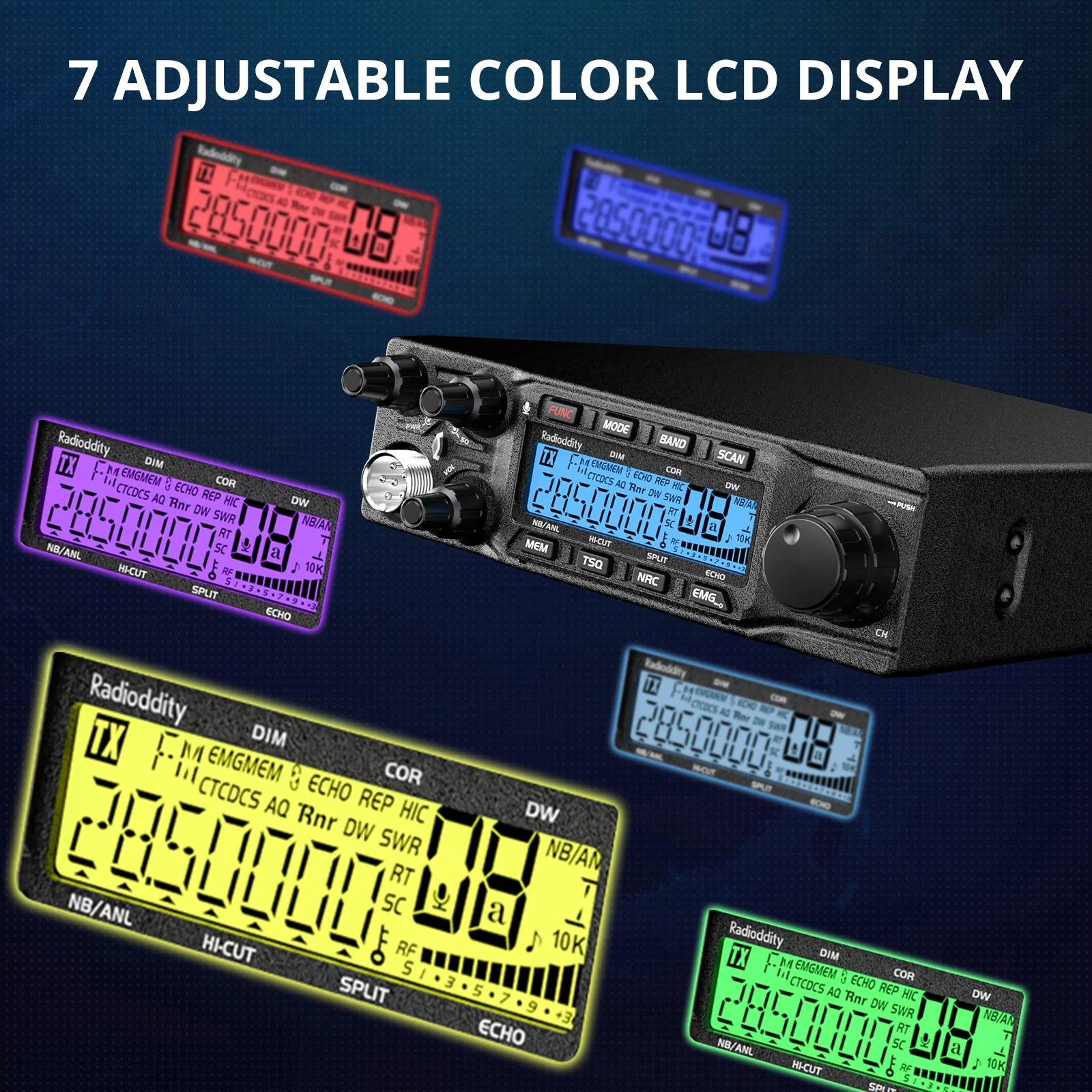

7-Color LCD Display
Personalize your interface with a vibrant 7-color LCD display that complements any environment. Choose your preferred color for optimal visibility and a modern touch, enhancing your communication setup.

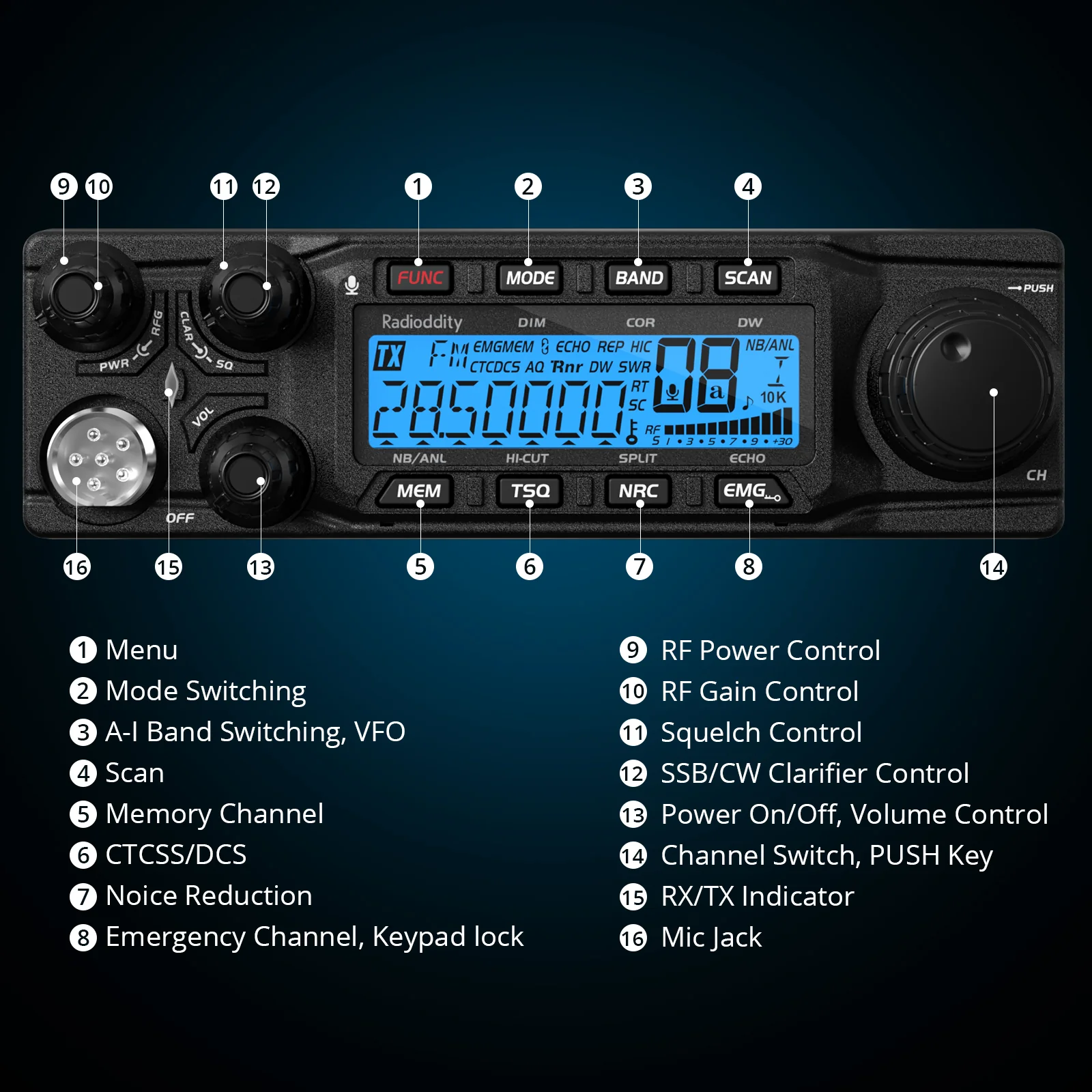

Functions & Features
- 7-color screen display and backlight dimming
- FM, AM, USB, LSB, CW (need DIY work), PA modes
- SSB TX audio bandwidth control
- Frequency Tuning Steps: 10Hz, 100Hz, 1KHz, 5KHz, 10KHz, 100KHz, 1MHz
- ± 500Hz, 5KHz Clarifier (R/T/R+T selectable)
- Flexible menu functions and PC programming software
- TX & RX Background Noise Reduction
- SQ, ASQ Function (FM and AM mode)
- RF GAIN Adjustment
- RF PWR Adjustment
- VFO / BAND / Memory Channel Modes
- Repeater Shift / Offset Frequency Function
- CTCSS/DCS with RX/TX Split functions
- SCAN Function
- CTCSS/DCS scan
- NB/ANL Function
- DW DUAL-WATCH Function
- SWR, S/RF meter Function
- TOT function
- HI-CUT Function
- EMG CALL
- SWR Protection
- Power Supply Voltage Protection
- Key-Lock Function
- DTMF Function
- BEEP Prompt
- Enhanced VOX Function (VOX.SPK can support digital mode operation)
- ECHO Function
- Programmable RB Function
- AM TX NPC
- User Defined (PF) key on microphone
- Audio path select 31.+10KHz Function
Note: please note that the CW is a bonus feature that you may need to DIY
the microphone to achieve it.
| General Specifications | |
| Frequency Range: | 28.000-29.700MHz (Programmable) |
| Frequency Band: | A/B/C/D/E/F/G/H/I + VFO |
| Channel: | 40 channels (programmable) in each band |
| Frequency Control: | Phase-Locked-Loop Synthesizer |
| Frequency Step: | 10Hz,100Hz,1KHz,5KHz,10KHz,100KHz,1MHz |
| Frequency Tolerance: | ±5.0 ppm |
| Temperature Range: | -20℃~ +50℃ |
| Microphone: | With Push-to-Talk / UP / DN / PF and coiled cord |
| Input Voltage | 13.8VDC |

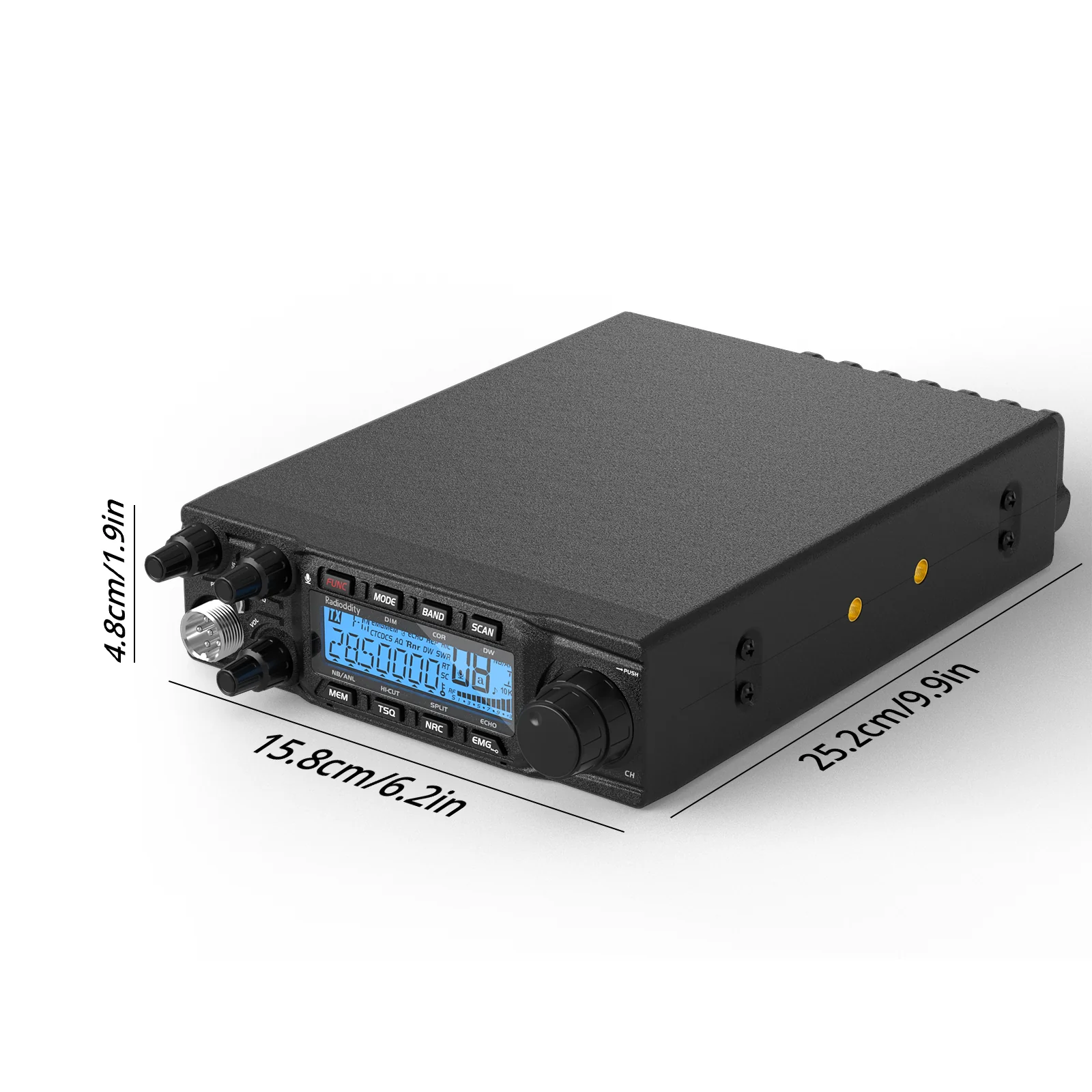

| Dimensions | 252(L) x 158(W) x 48(H) mm
/ 9.9(L)×6.2(W)×1.9(H) inches |
| Weight: | 1.27kg / 2.80 lb |
| Antenna Connector: | UHF, SO239 |
| Audio Output Power : | 3 watts into 8 ohms |
| FCC ID: | T4K-AT6666PRO |
| Built-in Speaker: | 8 ohms, round |
| External Speaker(Not Supplied): | 8 ohms; disables internal speaker when connected |
| Microphone Connector: | 6-Pin Connector |
| Transmitter | |
| Power Output: | AM: 80W(PEP) / FM:50W / SSB: 80W(PEP) |
| Drain: | 15A (with modulation) |
| Modulation: | FM/AM/USB/LSB/CW |
| Inter-modulation Distortion: | SSB: 3rd order, more than -25dB; 5th order, more than -35dB |
| SSB Carrier Suppression: | 55dB |
| Unwanted Sideband : | 50dB |
| Frequency Response: | AM/FM: 300 to 3000Hz
SSB: 450 to 2500H |
| Output Impedance: | 50ohms, unbalanced |
| Reception | |
| Sensitivity: | SSB: 0.25μV for 10dB(S+N)/N
AM:1.0μV for 10dB(S+N)/N FM: 1.0μV for 20 dB (S+N)/N (All at greater than 1/2 watt of audio output) |
| Adjacent-Channel Selectivity: | AM/FM: 60dB SSB: 70dB |
| Image Rejection: | More than 65dB |
| IF Frequency: | AM/FM: 10.695MHz 1st IF, 455KHz 2nd IF
SSB: 10.695MHz |
| RF Gain Control: | 45dB adjustable for optimum signal reception |
| Automatic Gain Control(AGC): | Less than 10dB change in audio output for inputs from 10 to 100,000 microvolt |
| Squelch: | Adjustable; threshold less than 1.0μV
Automatic Squelch Control (AM/FM) 1.0μV |
| Frequency Response: | AM/FM: 300 to 3000Hz
SSB: 450 to 2500Hz |
Recommended Accessories (not included in the package)
1.Radioddity CB External Speaker
2. Xiegu GY03 External Speaker
3. Radioddity RA-M5 Antenna Magnet Mount
4. Radioddity CBL-561 Antenna
5. Radioddity RS58 External Speaker

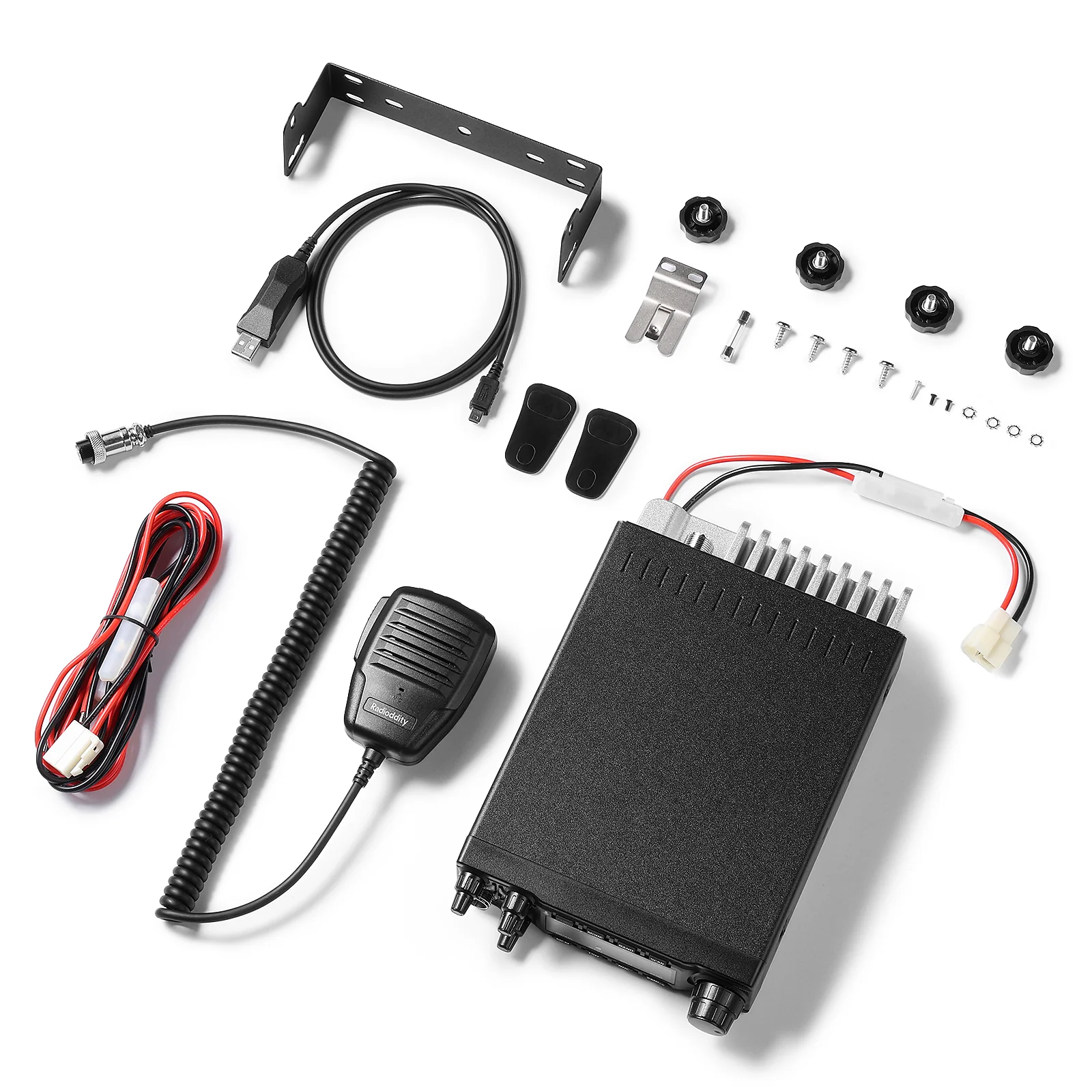

What’s in the box?
1 x QT80 10 Meter Radio
1 x Detachable Microphone
1 x Install Bracket
1 x Power Cable
1 x PC003 Programming Cable
1 x Spare Fuse (15A, 250V)
2 x Adhesive Case Protectors
4 x Adjusting Screws
4 x Screws
4 x Pads
QT80
QT40
QT60 Pro
Frequency Range
Frequency Band
Output Power
Channel
Modulation
Input Voltage
Background Noise Reduction
NOAA
Screen
Mic Gain
Automatic Squelch Control
Talk Range Maximum
(7-Color Adjustable)@@✔@@✔@@300-1000km(186-621miles)
WX/VHF RX:140-170MHz@@AM:1-12W/FM:1-40W/USB/LSB:1-35W@@480(40 programmable per band)@@FM/AM/SSB@@13.8V@@✔@@✔@@ @@ @@✔@@300-1000km(186-621miles)
