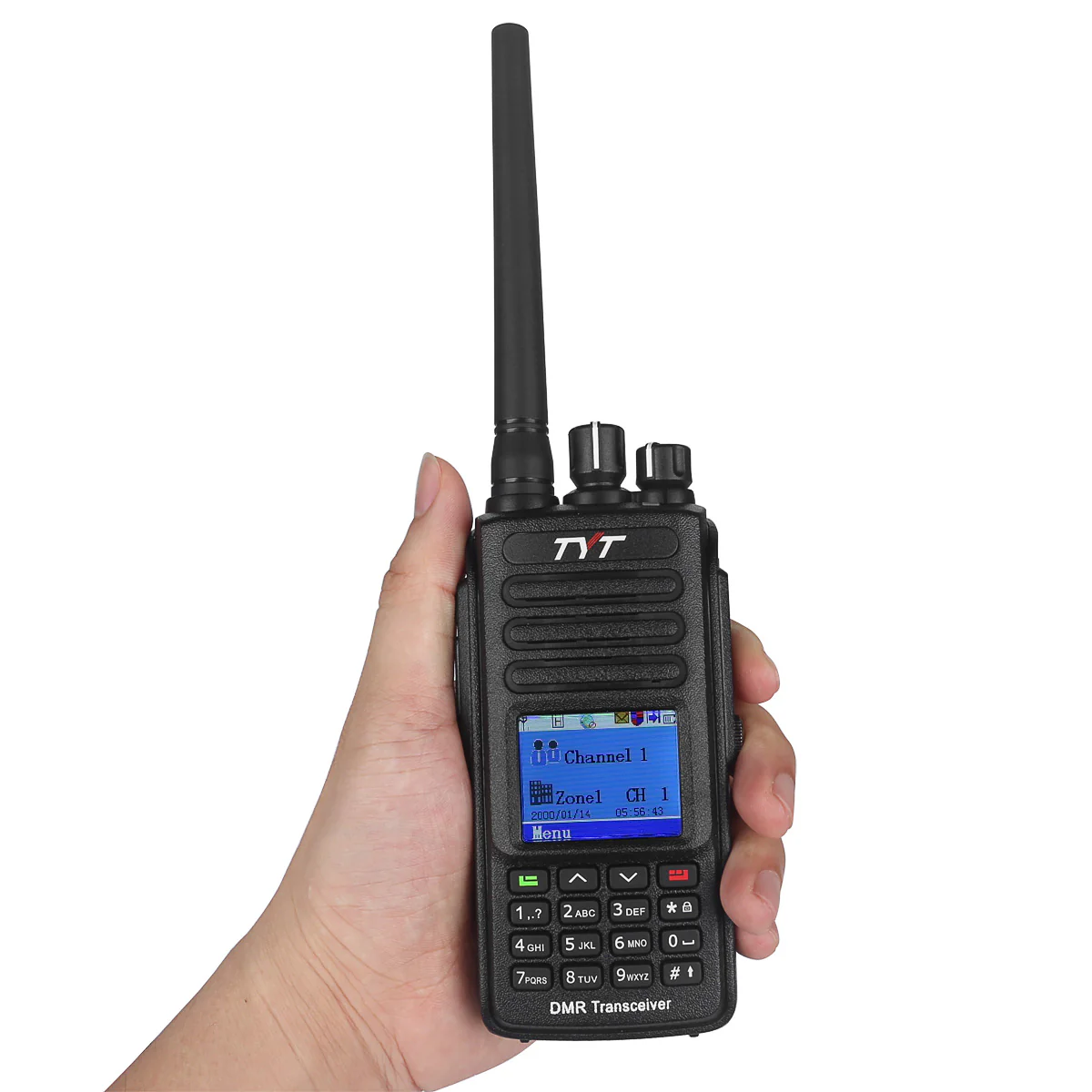

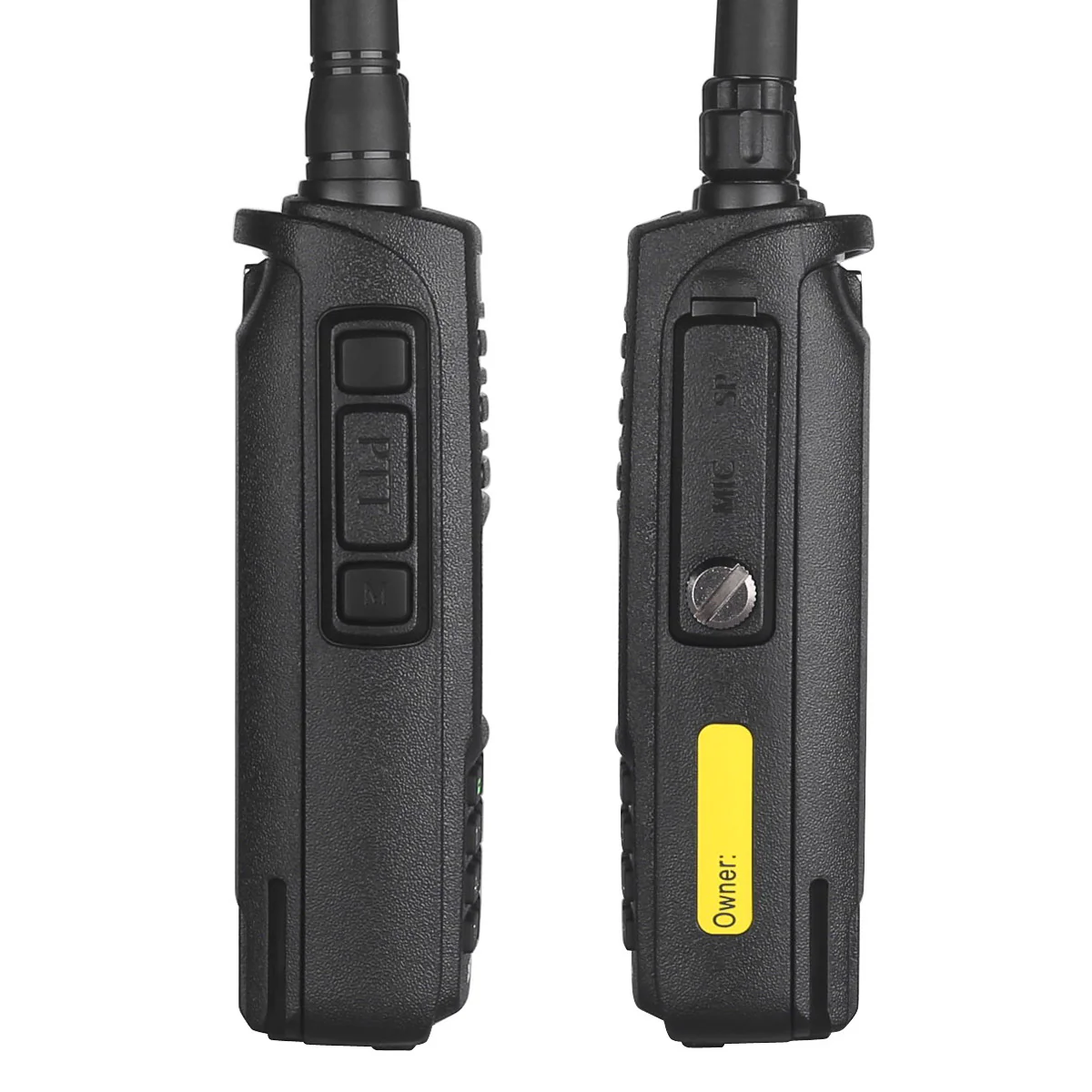

TYT MD-390G Waterproof UHF DMR + GPS+ Remote Speaker [DISCONTINUED]

This full-featured IP67 Waterproofed UHF MD-390 DMR (MotoTRBO) radio is the best in its class. Compare this radio to the competitors and you can see why there is no better radio to buy than the TYT MD-390.

Note:
In order to meet the FCC policies, the frequency range of the radios we sell is locked. But you can unlock the frequency range after you received it if you need.
❤ The Spread Frequency Software Download: https://radioddity.s3.amazonaws.com/Programming%20Guideline%20for%20TYT%20Radio.zip ❤

Some of its highlights are as follows:

Advanced GPS function for emergency communications

Compatible with Motorola (MotoTRBO), TYT DMR Radios and all other DMR radios(Compatible with Tier I & II)
Compatible with Tytera (TYT) MD-380’s CodePlug!!
IP67 waterproofed
2200mAh li-ion battery capacity
Use transflective LCD displays - usable under direct sunlight
Supports quick text message
Private/Group/All Call

What is IP67?

IP mean Ingress Protection

Dust Tight: No ingress of dust; complete protection against contact.
Immersion up to 1m: "Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion)".

Product Features:

۰ 1000 channels
۰ Complies with Mototrbo Tier I & II
۰ Remote monitor/enable/disable
۰ Power-on protection
۰ Transflective Color LCD display
۰ Zone selection via side-key
۰ Emergency call
۰ Built-in CTCSS/DCS
۰ Text messages in digital mode
۰ Encryption function
۰ Built-in CTCSS/DCS
۰ Priority scan
۰ Complies with digital protocol ETSI TS 102 361-1,-2,-3
۰ DTMF decoding and encoding
۰ Updated software available for new features
۰ Private call, group call, all call in digital mode
۰ Operate in both Digital & Analogue modes
۰ Allows easily migration from analog to digital
۰ Provides clearer voice communications in digital mode

　

Product Specifications:

General:

    Frequency Range: UHF: 400-480MHz
    Channel: 1000 Channels
    Channel Spacing: 12.5KHz
    Operating Voltage: 7.4V
    Battery Type: Li-ion
    Operating Temperature: -30℃+60℃
    Store Temperature: -40℃+85℃
    Antenna Impedance: 50Ω
    Audio Output Power: ≤1000mW@16Ω
    Battery Capacity: 2800mAh standard Li-ion Battery
    Dimension (H*W*D): 131*61*36*(Not Including Antenna)
    Weight: 258g

    Transmitter:

    Output Power: High: ≤5W (HI)   Low: ≤1W (Low)
    Frequency Stability: ±1.0PPM
    Adjacent Channel Power: ≤-60dB
    Free Time Slot Power: TDMA: ≤57dBm
    Hum and Noise: [email protected]
    Spurious Radiation: Antenna: 9KHz-1GHz ≤-36dBm
                                                    1GHz-12.75GHz ≤-30dBm
    FM Modulation Mode: 12.5KHz: 11K0F3E
    4FSK Digital Mode: 12.5KHz(data only): 7K60FXD
                                        12.5KHz(data + voice): 7K60FXE
    Modulation Maximum Deviation: [email protected]
    Non-active Slot Power: -57dBm

    Receiver:

    Analog Sensitivity: 0.35uV/ -116dBm(20dB SINDA)
                                  0.22uv/ -120dBm (Type)
    Digital Sensitivity:  0.3uV/ -117.4dBm(BER 5%)
                                  0.22uV/ -110dBm(BER 1%)
    Co-channel Rejection: ≥-12dB
    Rated Audio Power: 1W
    Rated: Audio Distortion: 3%(Type)

    CE Certificate



    RoHS Certificate:


Package Content:
1 x TYT MD-390 UHF Digital Mobile Radio (DMR) With GPS
1 x USB Programming Cable

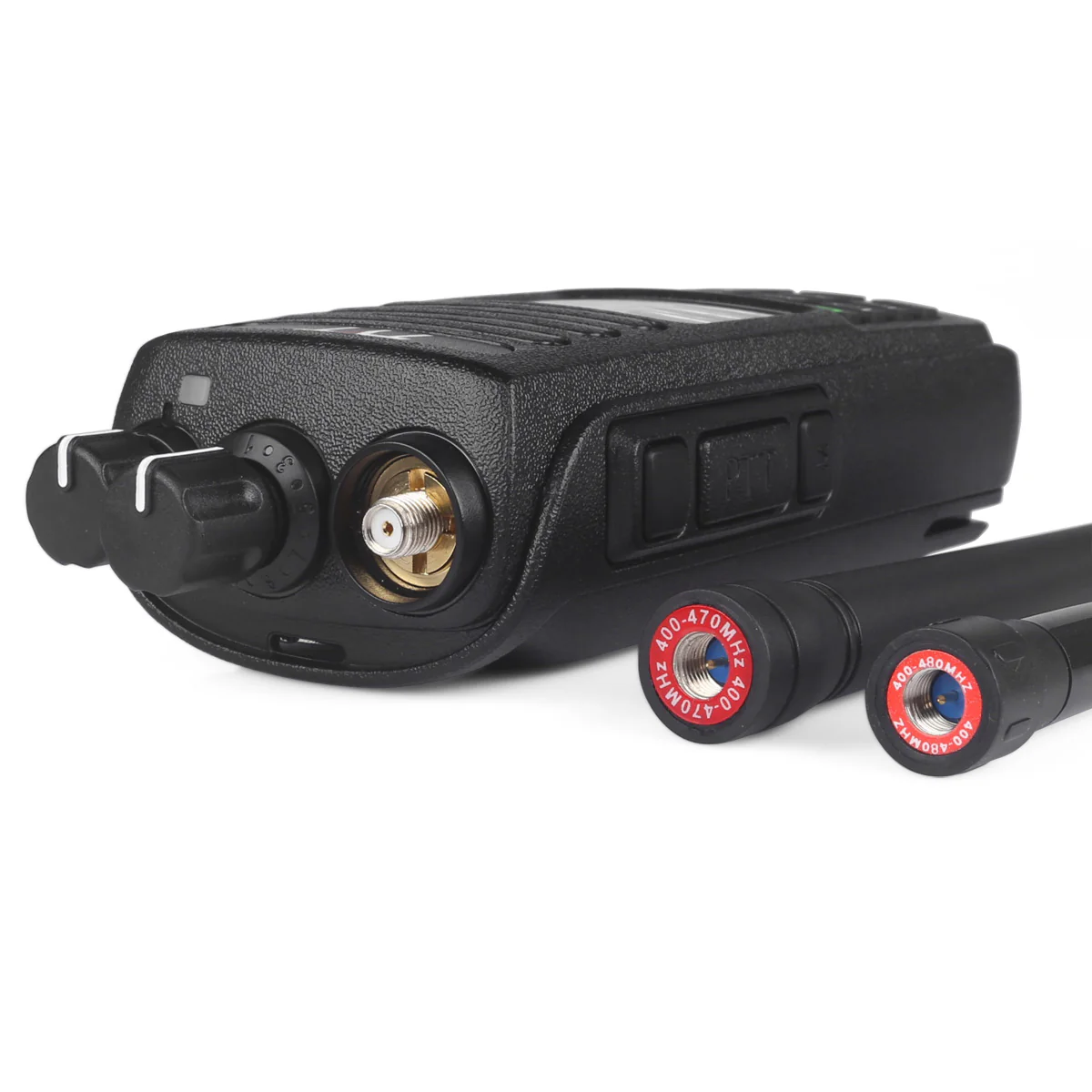

2 x Antenna

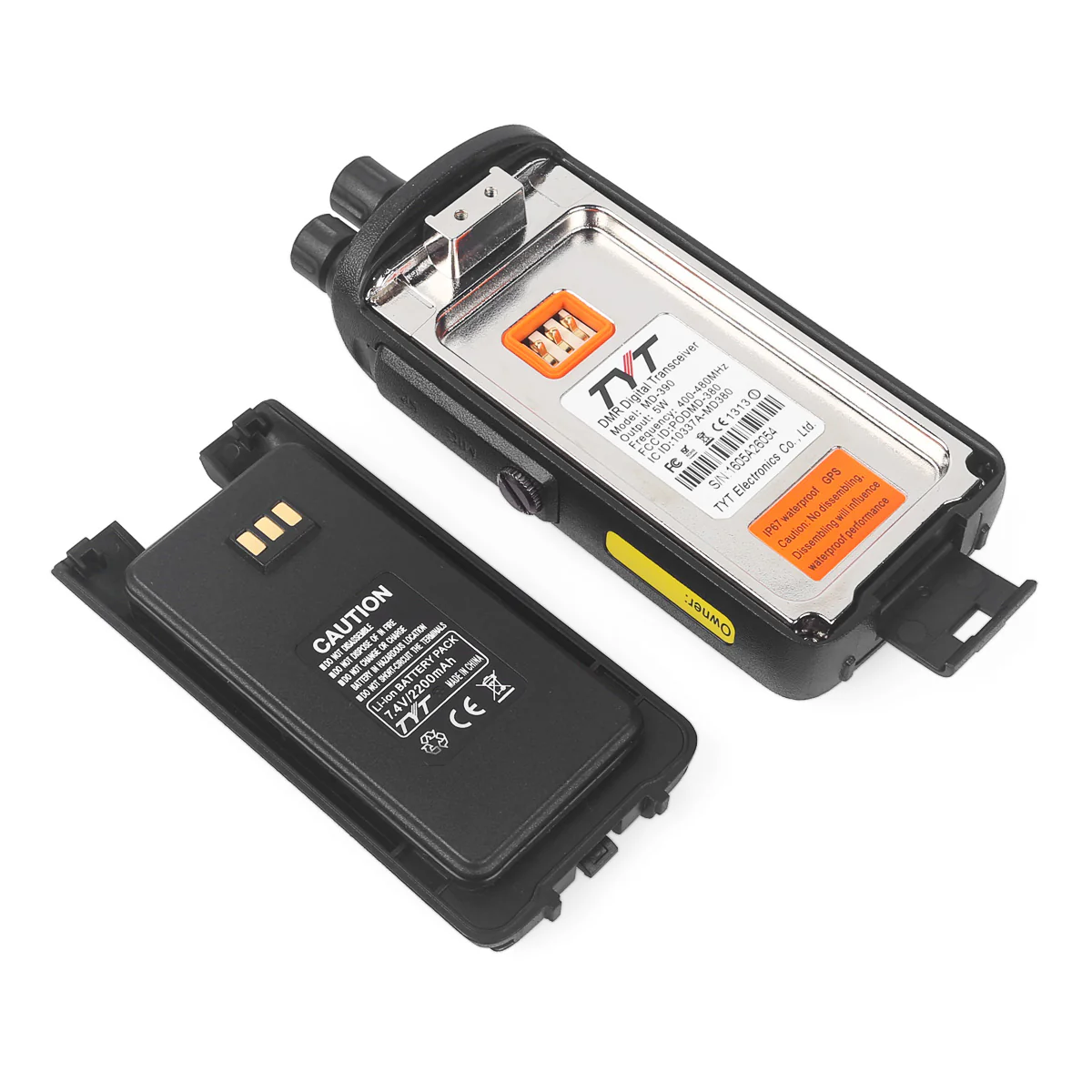

1 x Li-ion Battery 2200mAh
1 x IP67 Waterproofed Earphone
1 x Belt Clip
1 x Charger
1 x Adapter
1 x User's Manual

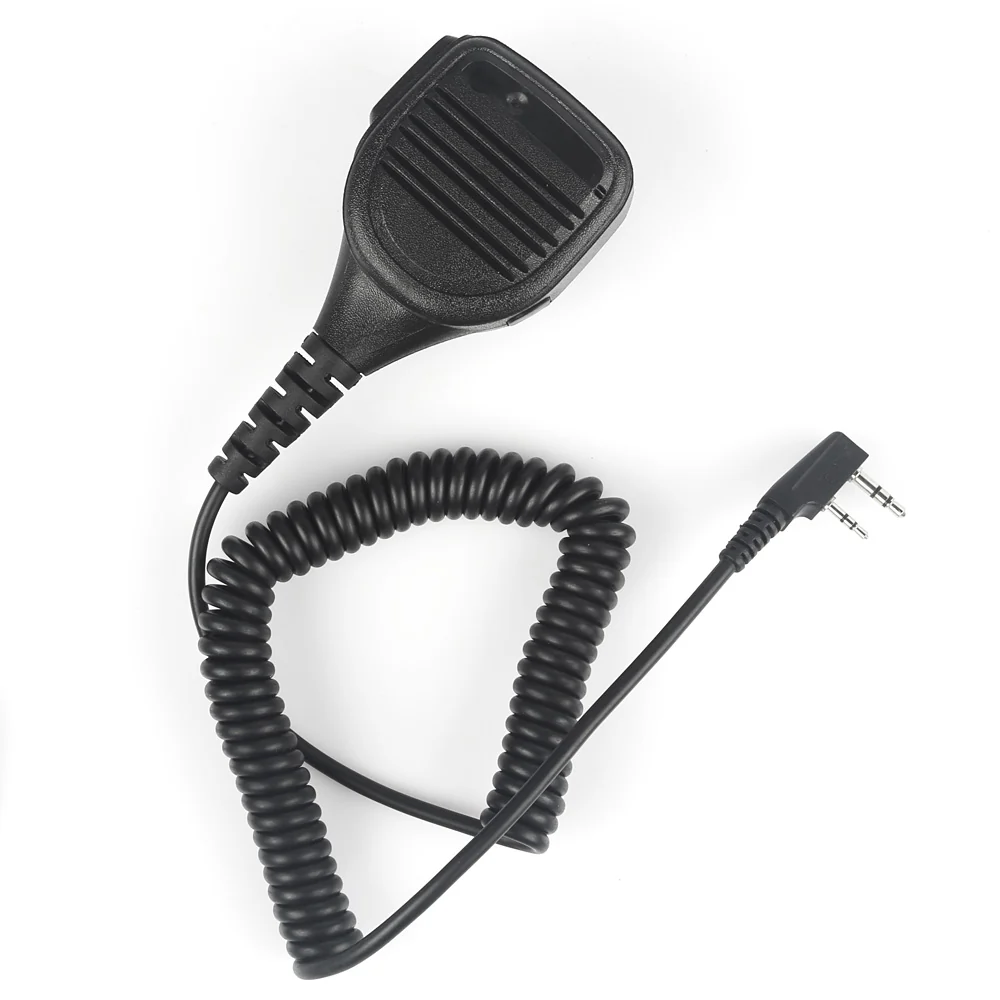

1 x Speaker mic for your radio (listen earpiece is not include)
