TYT TH-9000D 400-490MHz 45W Car Mobile Radio Transceiver [DISCONTINUED]
All Products
Functions:
Frequency Range: UHF: 400-490MHz
Output Power: UHF: 45W/25W/10W
8 group's of scrambler:
1750Hz Tone:CTCSS/DCS setting & scanning
0-9 SQL grade setting: Frequency/Channel scanning
High/Mid/Low power selectable: Voice commander
Repeater offset shift: Keypad lock function
Contact book: Battery voltage display
DTMF/2 tone/5 tone: ANI ID
Remote kill/ stun/ activate/ revive: Emergency alarm
Wide/Narrow band setting: TX inhibit
Busy Channel Lock-Out: Channel name editing
Reverse frequency: Talk around
Scrambler(Optional): Voice prompt
Time-out Timer: Auto Power off
VFO step setting:5/6.25/10/12.5/20/25/50kHz
Specification:
General:
Frequency Range: 400-490MHz
Channel Capacity: 200
Channel Spacing: 5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Freruency Stability: 2.5ppm
Operating Temperature: -20℃ ~ + 60℃
Operating Voltage: 13.8V DC ± 15%
Dimension(HxWxD): 145mm x190mm x47mm
Weight(with bracket): 1200g
Receiver:
Reference Sensitivity: 0.2μV @ 12dB SINAD
Operating Bandwidth: [email protected] /70dB@25KHz
Adjacent Channel Selectivity: [email protected] 70dB@25KHz
Inter-modulation Rejection: ≥60dB/ ≥65dB
Spurious Response Rejection: ≥70dB
Rated Audio Response: +1-+3dB
Rated Audio Distortion: <5%
FM Hum&Noise: ≥40dB@25KHz /≥45KHz @12.5KHz
Transmitter:
RF Power: 45W/25W/10W(UHF)
Frequency Modulation: 11kΦF3E / 16kΦF3E
Modulation Distortion: <5%
FM Noise: ≥36dB@25KHz /≥40KHz @12.5KHz
Adjacent Channel Power: ≥[email protected] /≥70KHz @25KHz
Audio Response: +1-+3dB
Audio Distortion: <5%

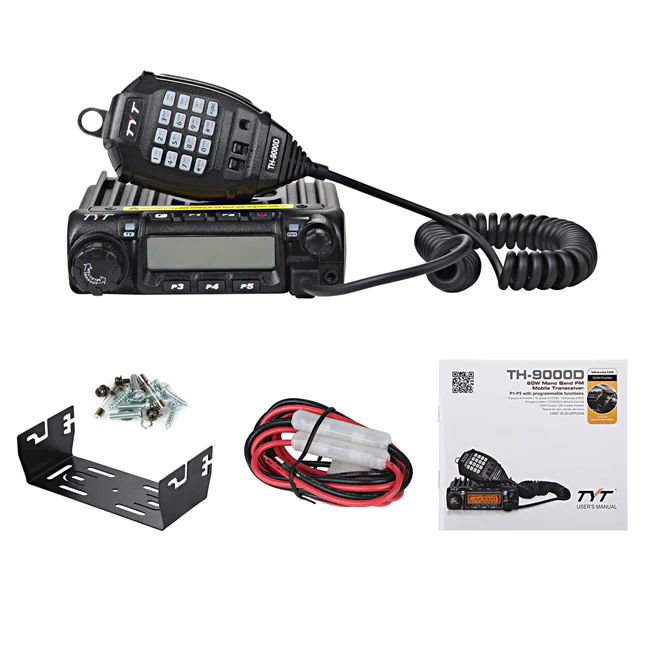

Package Content:
1 x TYT TH-9000D 400-490MHz Mobile Transceiver

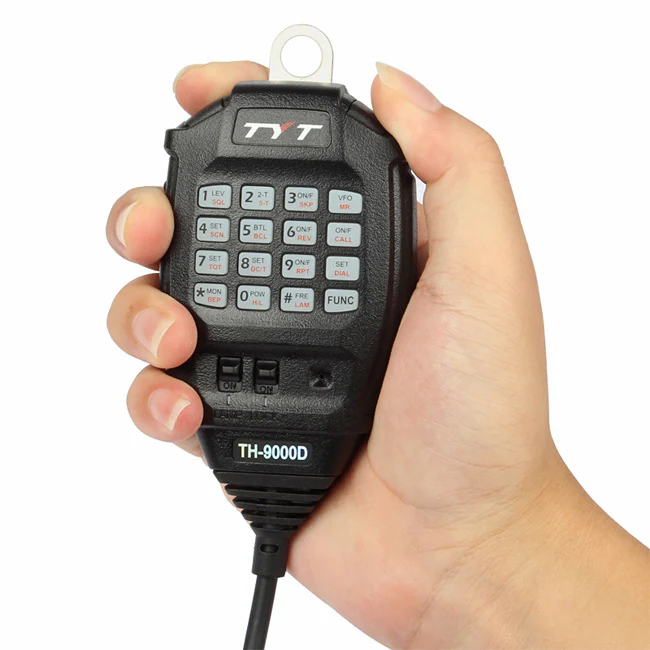

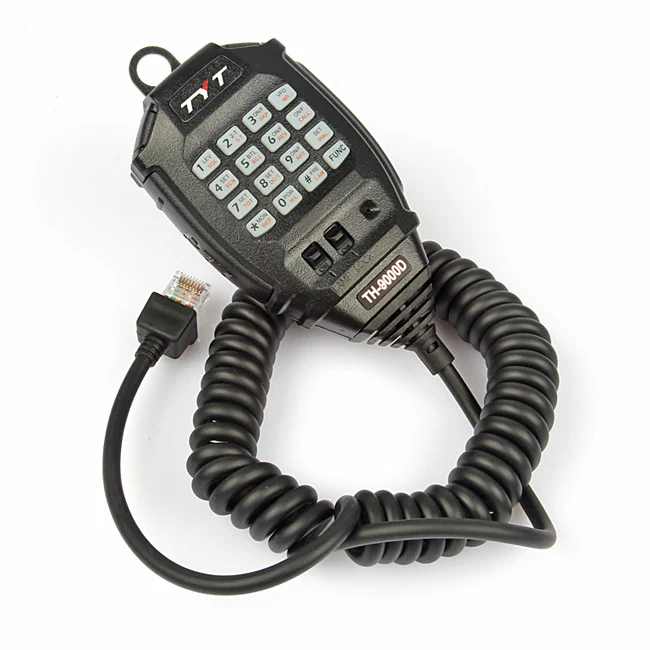

1 x Handheld Microphone
1 x Power Cable
1 x Screws and Accessories
1 x User's Manual
1 x Fixed Bracket
Frequency Range: UHF: 400-490MHz
Output Power: UHF: 45W/25W/10W
8 group's of scrambler:
1750Hz Tone:CTCSS/DCS setting & scanning
0-9 SQL grade setting: Frequency/Channel scanning
High/Mid/Low power selectable: Voice commander
Repeater offset shift: Keypad lock function
Contact book: Battery voltage display
DTMF/2 tone/5 tone: ANI ID
Remote kill/ stun/ activate/ revive: Emergency alarm
Wide/Narrow band setting: TX inhibit
Busy Channel Lock-Out: Channel name editing
Reverse frequency: Talk around
Scrambler(Optional): Voice prompt
Time-out Timer: Auto Power off
VFO step setting:5/6.25/10/12.5/20/25/50kHz
Specification:
General:
Frequency Range: 400-490MHz
Channel Capacity: 200
Channel Spacing: 5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Freruency Stability: 2.5ppm
Operating Temperature: -20℃ ~ + 60℃
Operating Voltage: 13.8V DC ± 15%
Dimension(HxWxD): 145mm x190mm x47mm
Weight(with bracket): 1200g
Receiver:
Reference Sensitivity: 0.2μV @ 12dB SINAD
Operating Bandwidth: [email protected] /70dB@25KHz
Adjacent Channel Selectivity: [email protected] 70dB@25KHz
Inter-modulation Rejection: ≥60dB/ ≥65dB
Spurious Response Rejection: ≥70dB
Rated Audio Response: +1-+3dB
Rated Audio Distortion: <5%
FM Hum&Noise: ≥40dB@25KHz /≥45KHz @12.5KHz
Transmitter:
RF Power: 45W/25W/10W(UHF)
Frequency Modulation: 11kΦF3E / 16kΦF3E
Modulation Distortion: <5%
FM Noise: ≥36dB@25KHz /≥40KHz @12.5KHz
Adjacent Channel Power: ≥[email protected] /≥70KHz @25KHz
Audio Response: +1-+3dB
Audio Distortion: <5%
Package Content:
1 x TYT TH-9000D 400-490MHz Mobile Transceiver
1 x Handheld Microphone
1 x Power Cable
1 x Screws and Accessories
1 x User's Manual
1 x Fixed Bracket
$38.70
Original: $128.99
-70%TYT TH-9000D 400-490MHz 45W Car Mobile Radio Transceiver [DISCONTINUED]—
$128.99
$38.70Product Information
