QB25 Pro Quad Band Mini Mobile Radio+ Cable + 50W Antenna

Description

Radioddity QB25 Pro is the first mobile car/truck radio of Radioddity. It is designed to meet your need of owing an ideal vehicle radio which is professional, safe, durable, comfortable and simple to use. Except from quad band, quad-standby and four color screen display, this multifunctional mini car transceiver is also equipped with a programming cable and CD to help your programming. Besides, we specially offer a professional 50W high gain quad band antenna to show the radio’s greatest performance!

Features:
PTT-ID Code
Long-distance Communication
FM Radio
Alarm Function Monitor
Time-out-timer(TOT)
Input frequency directly through MIC
2100Hz/1750Hz/1450Hz/1000Hz
LCD display
CTCSS&DCS encode/decode
Scanning function
Busy channel lock
Squelch
Remote Alarm
Wide(25KHz)/Narrow(12.5KHz) bandwidth selective
Frequency step 2.5/5/6.25/10/12.5/25KHz
Reset

Specifications:
Car Radio
Frequency Range:
VHF: 136-174MHz (220-260MHz)
UHF: 400-480MHz (350-390MHz)
Number of Channel: 200
Channel Spacing: 25KHz / 20KHz / 12.5KHz
Output power: 25W/20W
Squelch way: CARRIER/CTCSS/DCS/5Tone/2Tone/DTMF
Dimension: 3.9(W) x 1.7(H) x 5.0(D)in
Weight: 448g

Quad Band Antenna
Frequency: 146MHZ/222MHZ/365MHZ/430MHZ (center frequency)
VHF: 136-174MHz (220-260MHz)
UHF: 400-480MHz (350-390MHz)
Length: 19.9in + 19.3in (top half + second half)
Maximum power: 50W

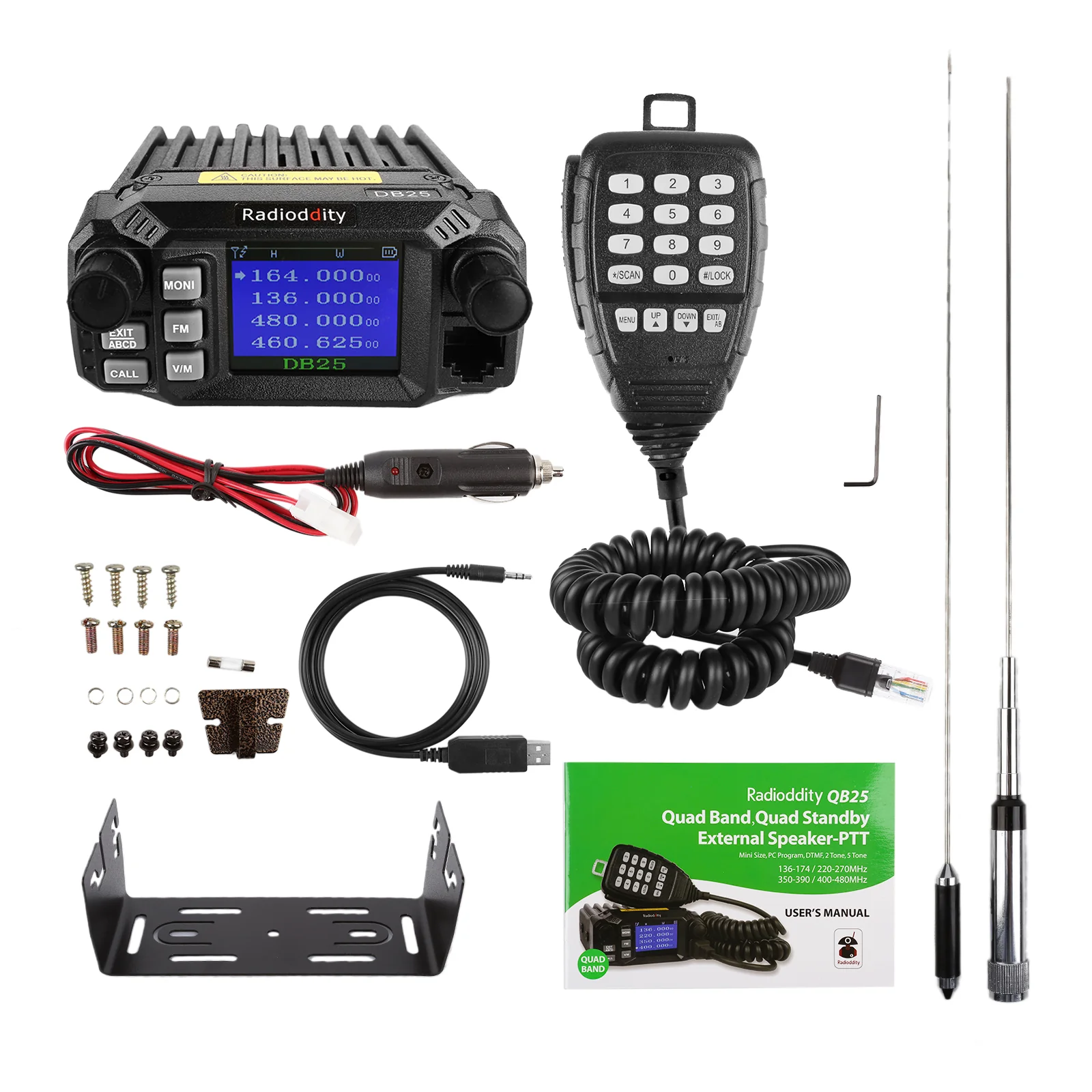

Package Content:
1 x Mini Mobile Radio Transceiver
1 x Speaker Microphone
1 x Car Power Cable
1 x Spare Fuse
1 x Mounting Bracket
1 x Screw Sets
1 x User Manual
1 x Programming Cable
1 x Quad Band Antenna
1 x Double-sided Adhesive

Note: Antenna does not come with antenna cable.

QB25 Pro

DB25 Pro

DB50

https://www.radioddity.com/products/radioddity-qb25-pro-mini-mobile-radio-cable-cd-50w-high-gain-antenna

https://www.radioddity.com/products/radioddity-db25-pro-dual-band-quad-standby-mini-mobile-car-truck-radio-cable-cd-50w-high-gain-quad-band-antenna

https://www.radioddity.com/products/radioddity-db50

Band

Band Type

Output Power

Frequency Range

Channel Capacity

Display Type

Monitor Type

Watch Type

Antenna Port

Front Panel

Chirp Programmable

Dimensions

Weight

VHF/UHF@@Quad-band@@25W/20W@@146MHZ/222MHZ/365MHZ/430MHZ (center frequency)
VHF: 136-174MHz (220-260MHz)
UHF: 400-480MHz (350-390MHz)@@200@@Quad Display@@Quad Monitor@@Quad Watch@@PL-259@@Fixed@@✔@@3.9x 1.7 x 5.0in
99×43×127 mm@@448g/15.8oz

VHF/UHF@@Dual-Band@@25W/20W@@VHF: 136-174MHz
UHF: 400-480MHz@@200@@Dual Display@@Dual Monitor@@Dual Watch@@PL-259@@Fixed@@✔@@3.9x 1.7 x 5.0in
99×43×127 mm@@448g/15.8oz

VHF/UHF@@Dual-Band@@50W/25W/10W/5W(VHF)
40W/25W/10W/5W(UHF)@@TX: 136-174Mhz / 400-490Mhz
RX: 108-180MHz (AM/FM) / 220~260MHz (FM)
400~523MHz (FM) / 350~399.995MHz (FM)@@758@@Dual Display@@Dual Monitor@@Dual Watch@@PL-259@@Detachable@@✔@@12.60 x8.27 x2.36 in
32.00 x21.00 x6.00cm@@1.85kg/4.07lb
