XIEGU G1M HF Transceiver | Quad Band | Portable SDR | QRP | 5W SSB CW AM

　

Features
• High Performance SDR Core Circuit Design
• Bright OLED Display + Spectrum Display
• NEW AM Broadcast Receiving Mode
• NEW Added CW Trainer Function
• Adaptive Speech Noise Reduction processing
• HF Continuous ReceiverTuning
• Supports Data Communication Mode
• Supports Connection interfacing with PC
• Supports Manual / Automatic CW Key operation for Straight or Iambic Keys (see below)
• Supports Connection with XPA125 / XPA125B / XPA20 Amplifiers
• Adjustable AGC Control
　

Note: Please do not randomly change the settings of the factory configuration menu, or the whole machine may be damaged or function abnormally!

Supports Connection with a PC: With 3.5mm socket, G1M can connect to a computer for data modes using aftermarket soundcards. As an example Tigertronics Inc. sells a G1M kit developed with a G1M user, for data modes, others are available as well.
Also, via new interfaces G1M can easily connect to the XPA125/XPA125B /XPA20 amplifiers.

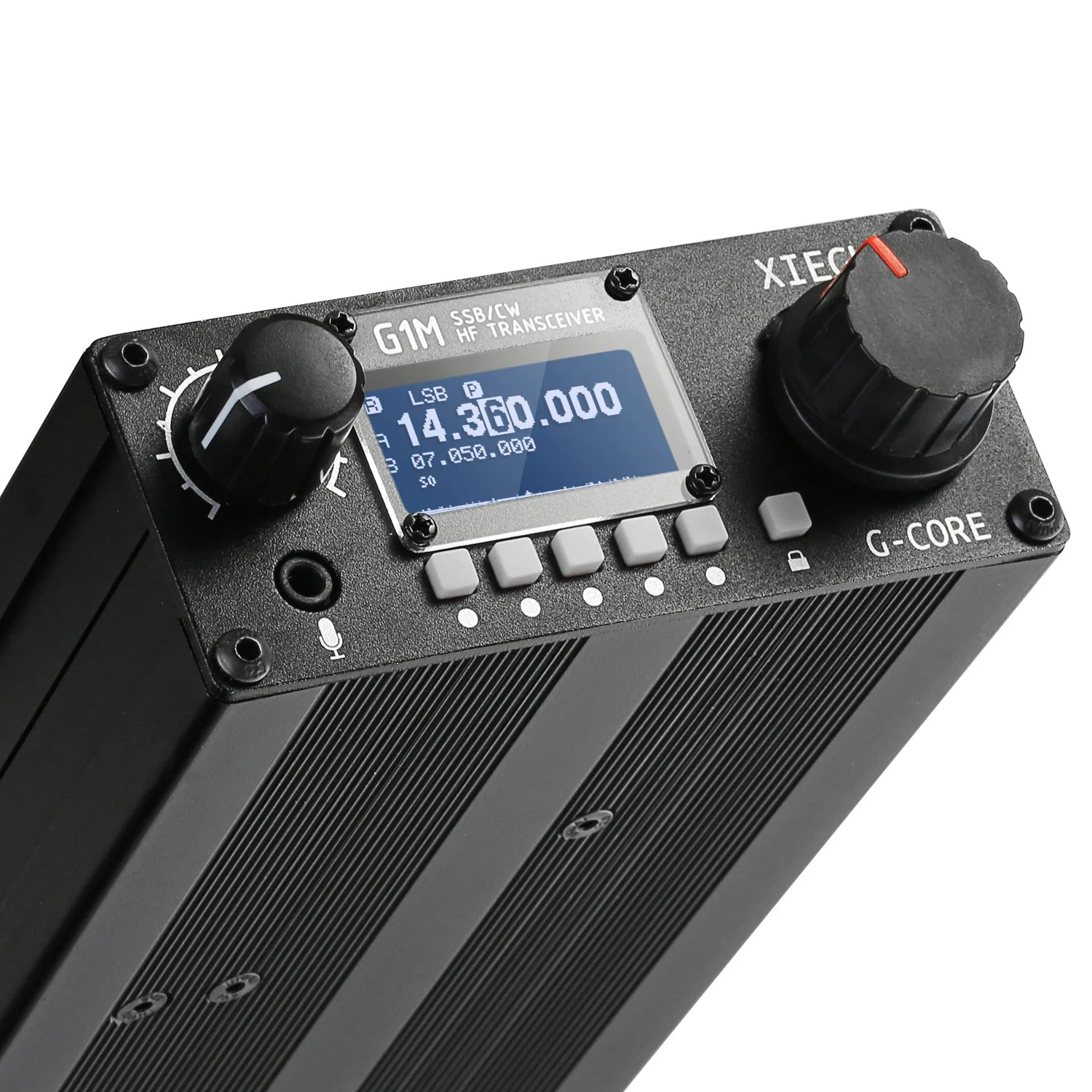

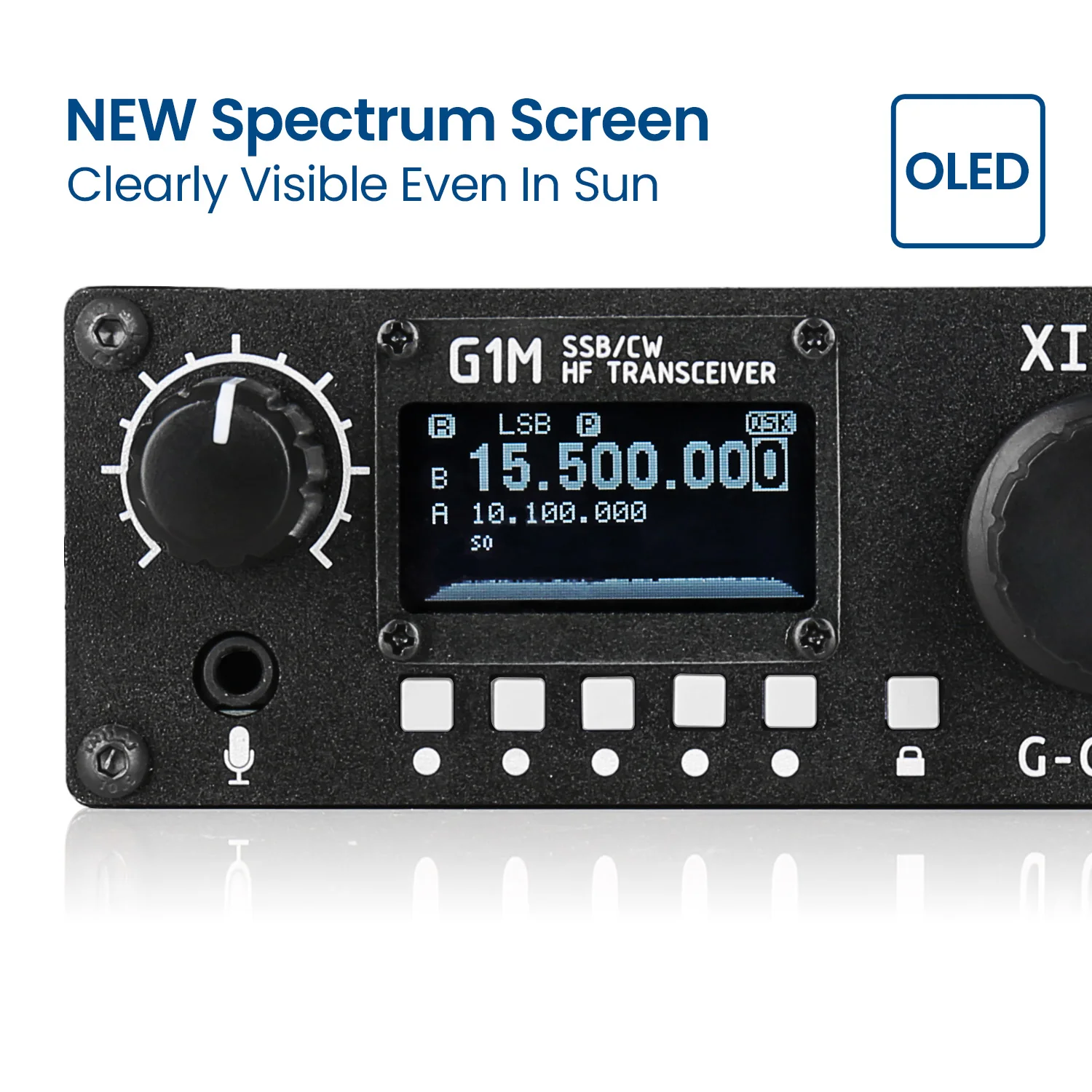

Clear OLED Display: All the function changes are clearly shown on the display. The screen is clear even in sun.

Support Key Mode Selection: You can choose manual or automatic mode, left-hand mode or right-hand mode as you desire via multi-function buttons.

　

Specifications
Receiving Frequency: 0.5～30MHz（Continuous）
Transmitting Frequency:
3.5～4.0MHz
7.0～7.3MHz
14.0～14.35MHz
21.0～21.45MHz
Storage Channel: 99
Operating Mode: SSB/CW/AM (AM is only used to receive broadcasts)
Receiving Sensitivity: 0.45uV 12dB SINAD
Receiving Dynamics: 90dB
Transmit Power: 5W 13.8V DC
Spurious Suppression: ≥45dB
Frequency Stability: ±1.5ppm (30 minutes after turning on the power)
Audio Output Power: 0.5W
Operating Voltage: 12～15V DC
Stand-by Current: 0.5A max
Transmitting Current: 2.5A max
Wavelength: short-wave including four amateur radio bands

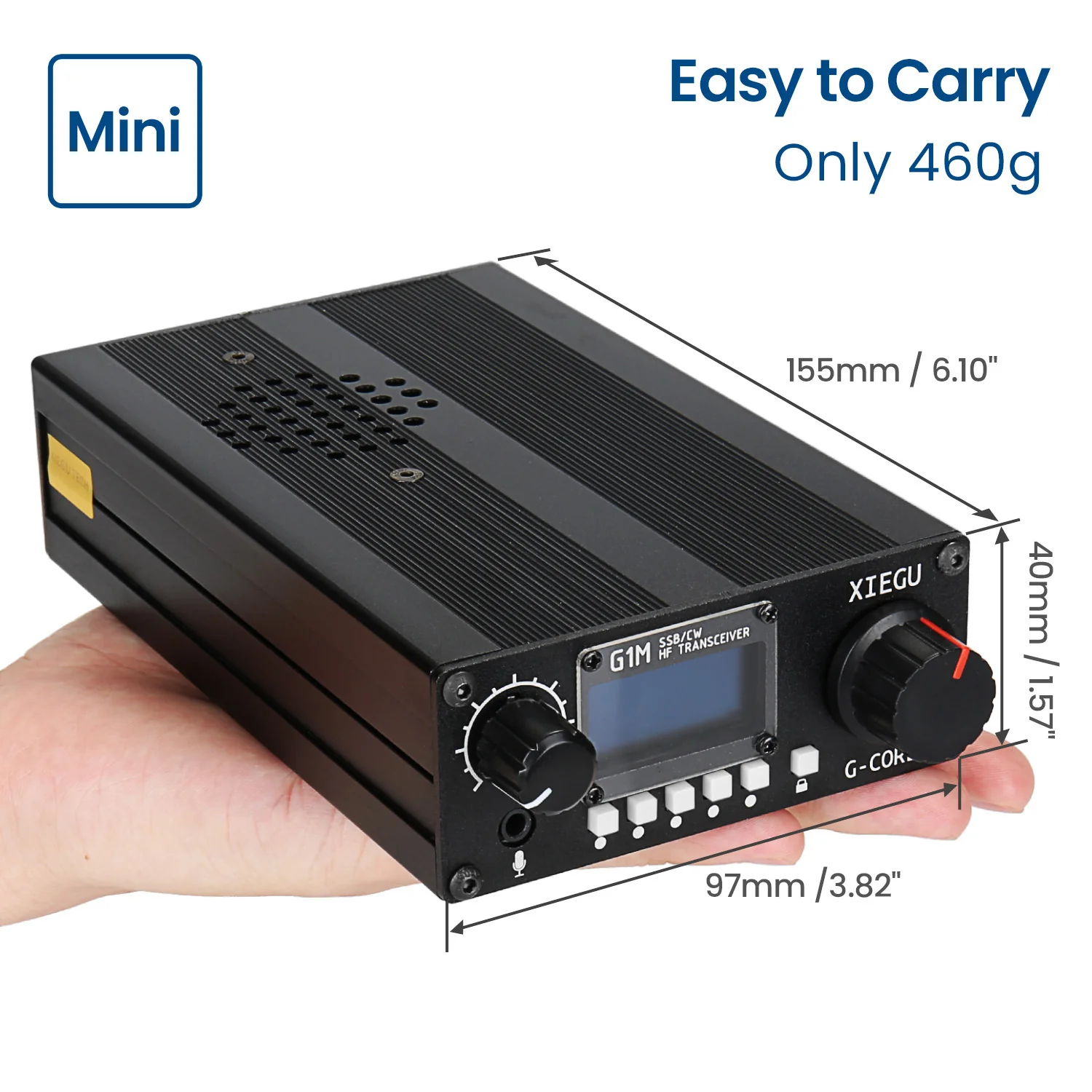

Case Size: 97*40*155 (mm)

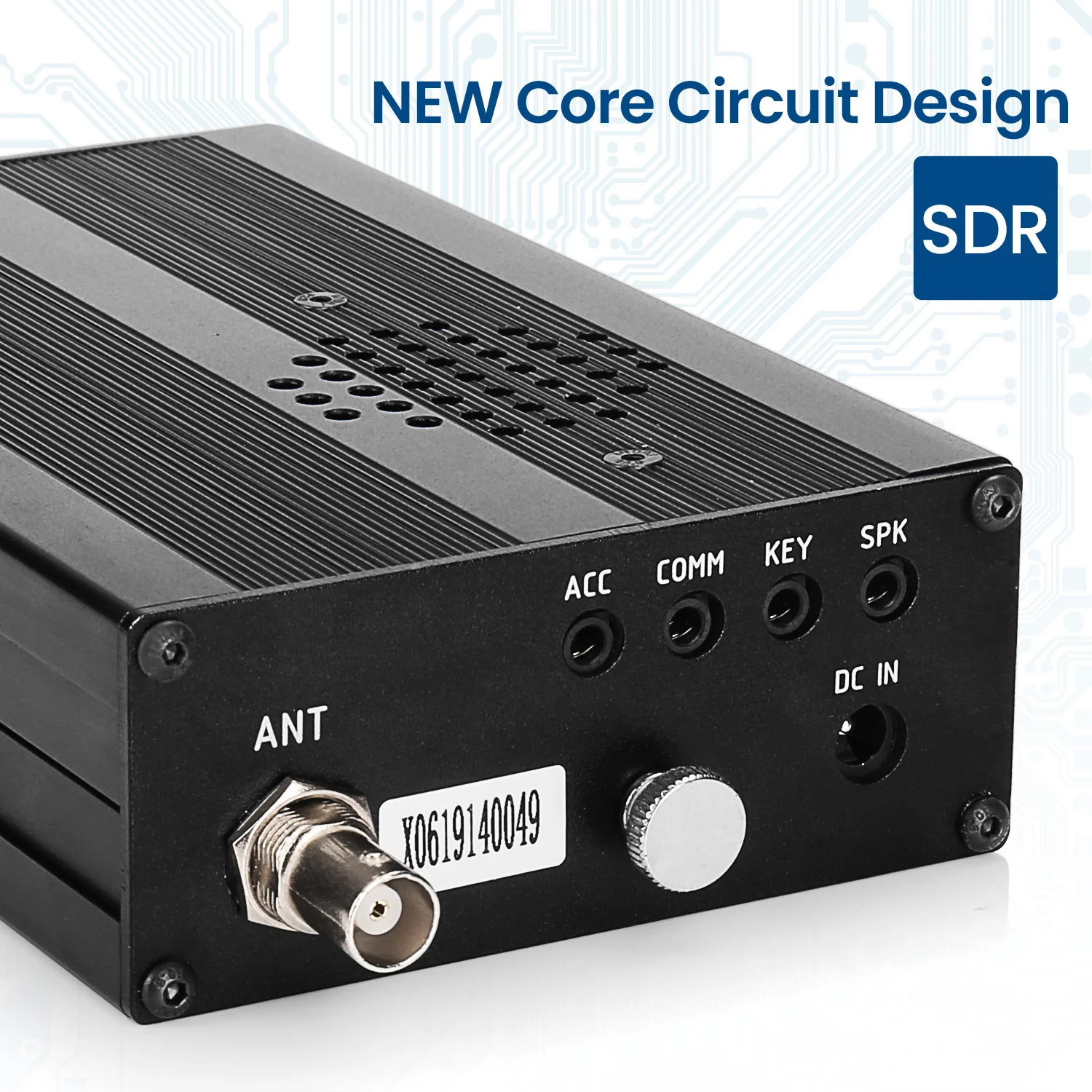

Antenna Socket: BNC connector
Certification: CE, FCC (ES190111036E)
　

More Related Procucts
1. Xiegu G90 SDR Radio
2. Xiegu X5105 HF Transceiver
3. Xiegu XPA125B Power Amplifier
2. CE-19 Expansion Port for easy PC connection
3. Radioddity G90-H1 Holder & Cooling Fan
4. Radioddity PAX100 100W Amplifier
5. Xiegu GSOC Controller Panadapter/Data Terminal
6. Xiegu GNR1 Digital Audio Noise Filter
　

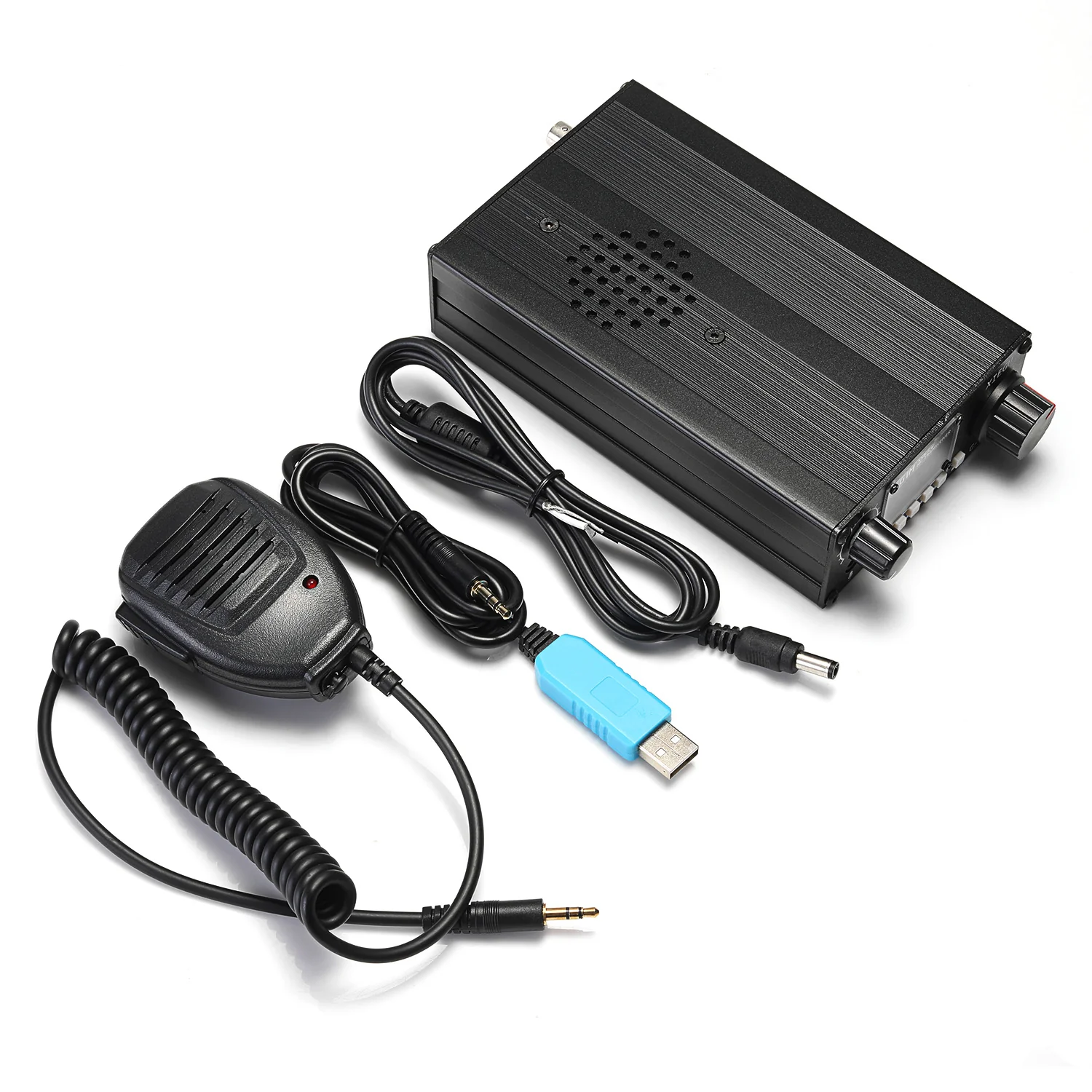

Package Content
1x G1M HF Transceiver
1x Speaker Mic
1x Coaxial Power Cable
1x English Manual
1x Certificate
1x Warranty Card
