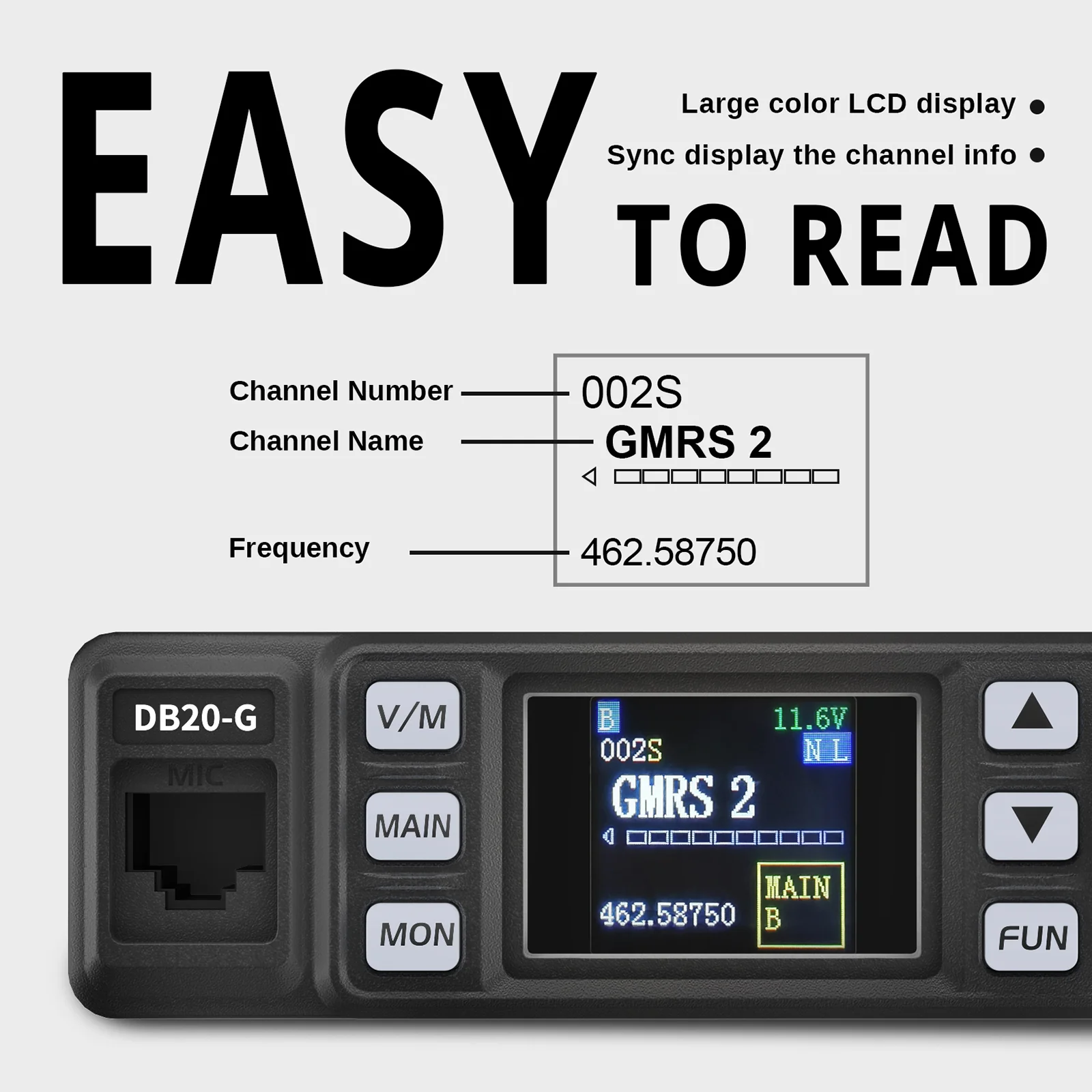

Sync Display
The SYNC feature show both the name and frequency, you can easily view name of the channel and its frequency.
DB20-G embeded a large LCD color screen, and its white text color helps read the info clear and quickly.

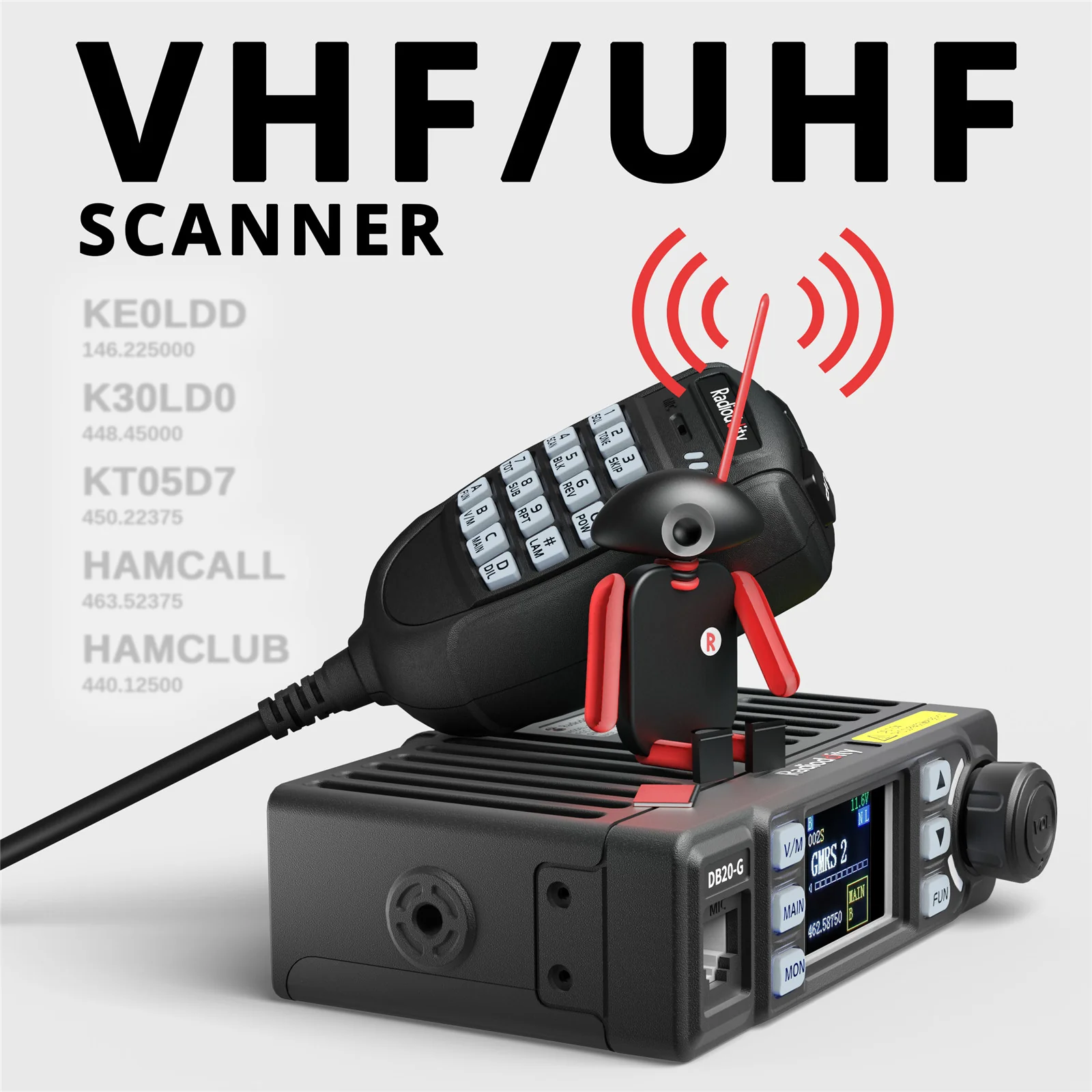

Scan/Add/Remove Channels
Customized Scan Range:
Allow you to set freq scan upper and lower limits. It's very effective and efficient to scan a range instead of the entire spectrum.
Easy to Change Channel List:
Channels Add/Remove from the scan list can be utilized via the radio menu directly.

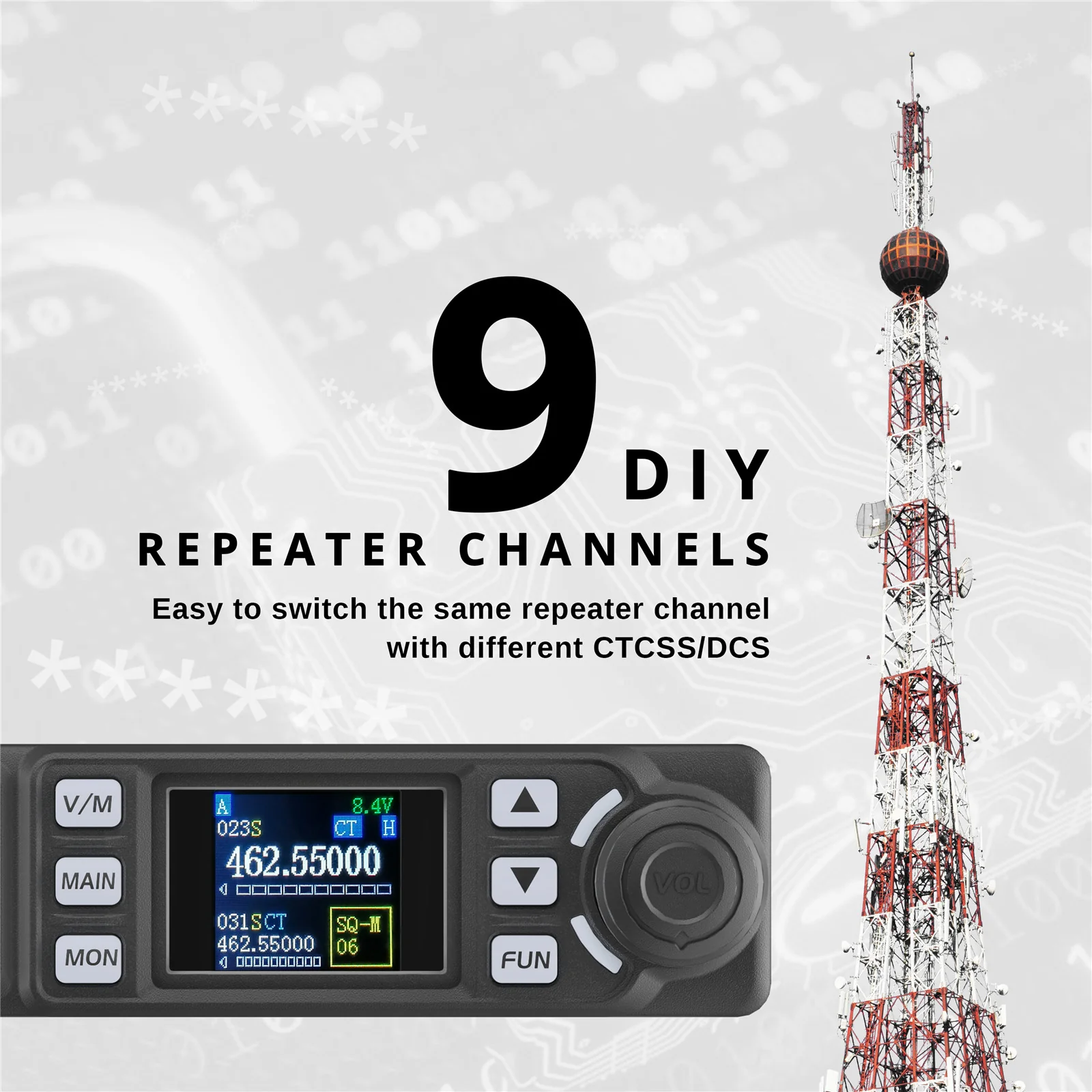

DIY Repeater Channels
In many cases you have repeaters operating on the frequencies with different codes.
Beside the 8 repeater channels, DB20-G has 9 extra DIY repeater channels allow you enter multiples of the same frequencies that differ only by ctcss or DTS codes, which save a big time for hitting a repeater.
12V Cigarette Lighter Plug
DB20-G comes with a power cable for connecting to a cigarette lighter in a car, it's more flexible and easy to put away the radio when not in use.
NOAA Broadcast
There are 7 pre-programmed NOAA weather channel, which is easy to monitor the weather band to be prepared before the serve disaster.
Work Seemlessly with GMRS Handhelds
DB20-G works well with all the GMRS handheld (we recommend Radioddity GM-30 GMRS handheld), it makes its work efficiently for camping and being able to communicate with your crew!
Radioddity DB20-G CPS V2.02
1. Change the default bandwidth from Narrow to Wide.
2. Address the bug that "when repeater TX frequency change, RX frequency automatically match".
CLICK HERE to download the latest CPS.
Features
51 CTCSS / 1024 DCS
1-9 VOX
VOX delay
BCL (Busy channel Lock)
TOT (Time out timer)
DMTF
Squelch
Scan pause time
LCD brightness
Tone burst
Sub channel display
Key beep
3 Channel display mode
NC (Noise reduction)
Specifications
Frequency Range: TX1: 462.5625-462.7125MHz (5W) | TX2: 462.550-467.725MHz | RX: 136-174MHz, 400-480MHz, 65-108MHz
Power: 462.5625-462.7125MHz (5W) | 462.550-467.725MHZ (18W)
Channel Spacing: 12.5K/25K
Channel Number: 500 channels
Operating Voltage: DC 13.8V±15%
Squelch Mode: Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability: ±2.5ppm
Operating Temperature: -20°C ~ +60°C

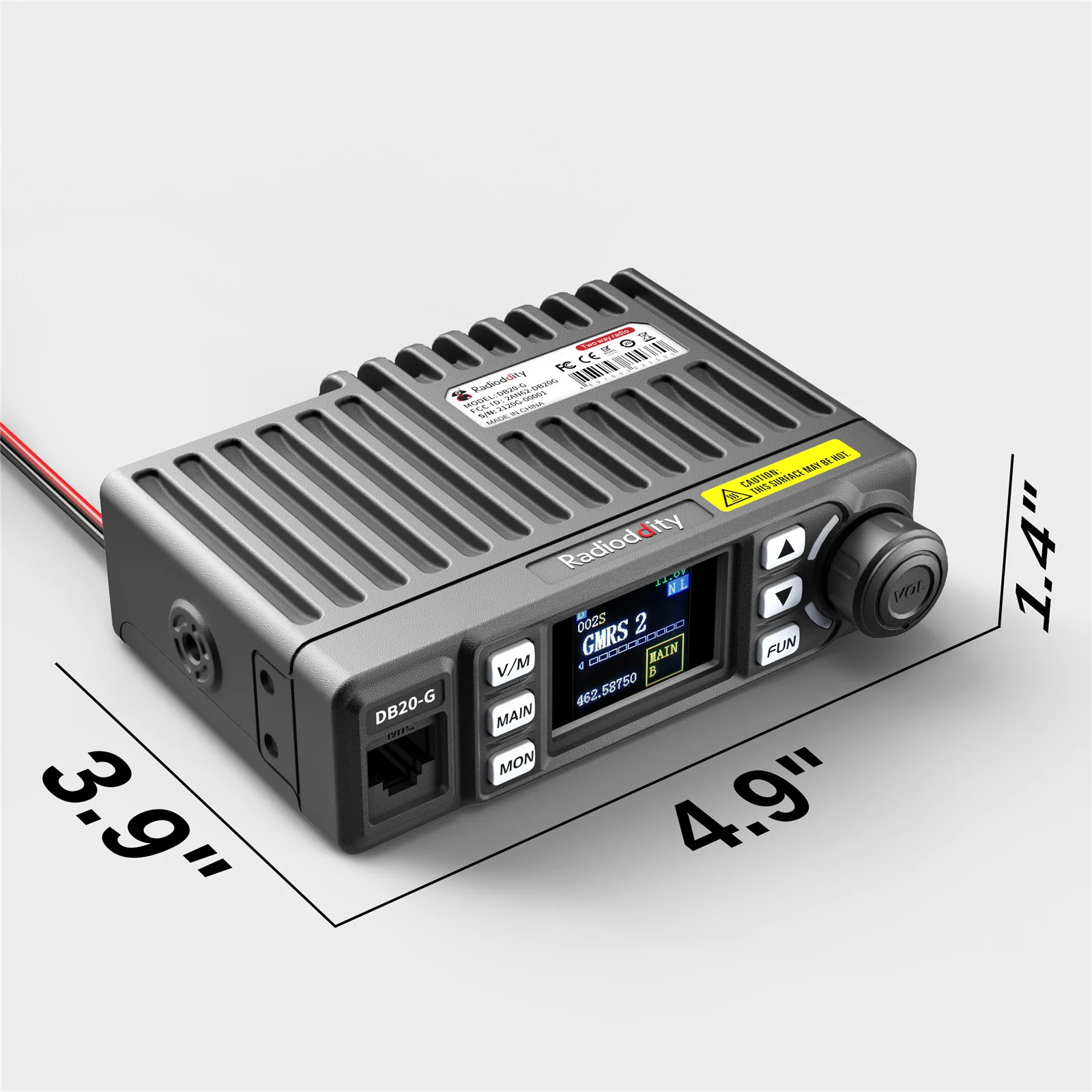

Dimensions(mm): 124x101x36
Weight: 0.45kg (base station)
Antenna Port: SO-239
Need Antenna with Port: PL-259
500 Channels Table
Channel 1-30 (RX and TX): 30 GMRS channels
Channel 31-39 (RX and TX): 9 DIY repeater channels
Channel 40-493 (RX only): 454 VHF(136-174MHz) and UHF(400-490MHz) channels
Channel 494-500 (RX only) 7 NOAA Channels

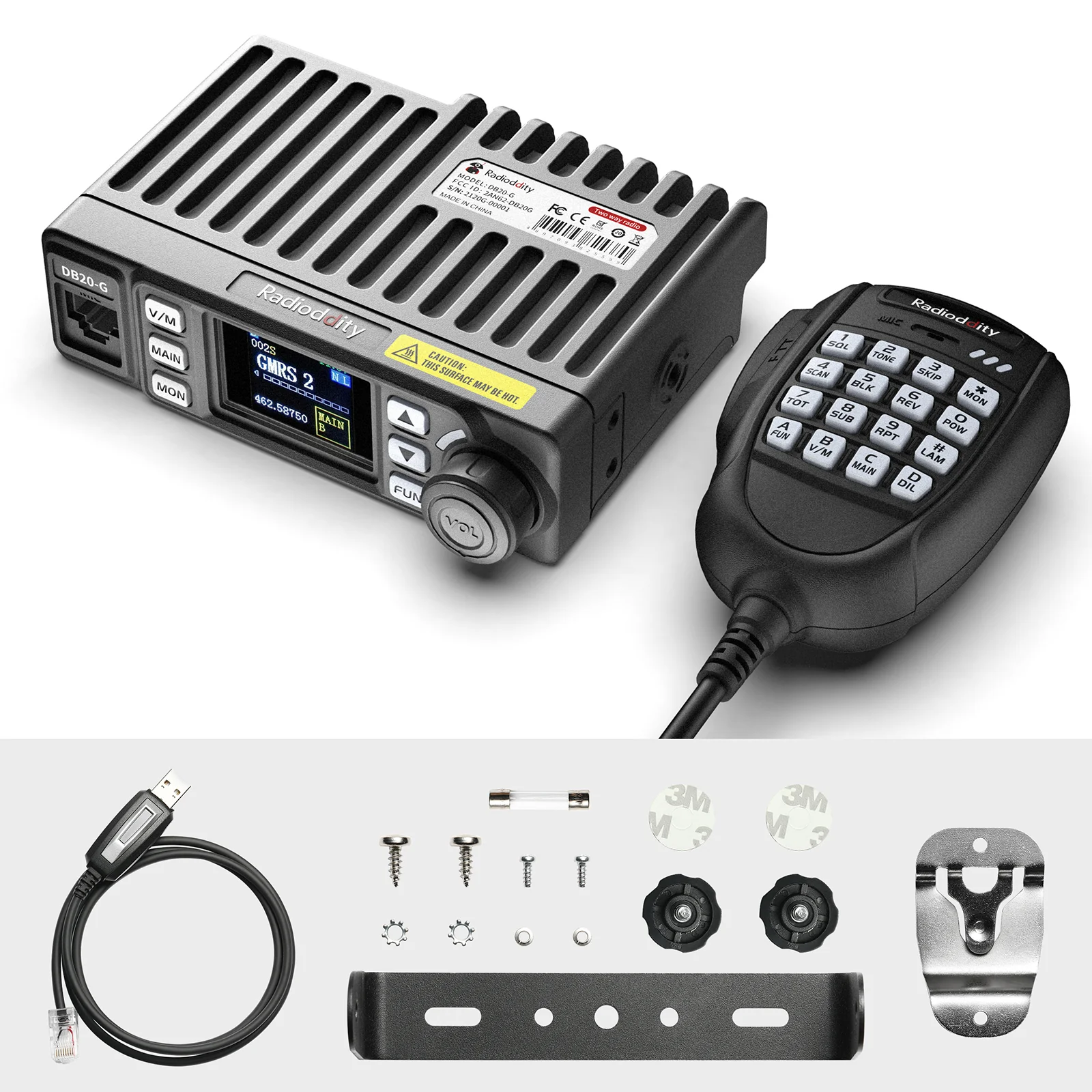

What's in the box?
1 x DB20-G Mobile with a Cigarette Lighter

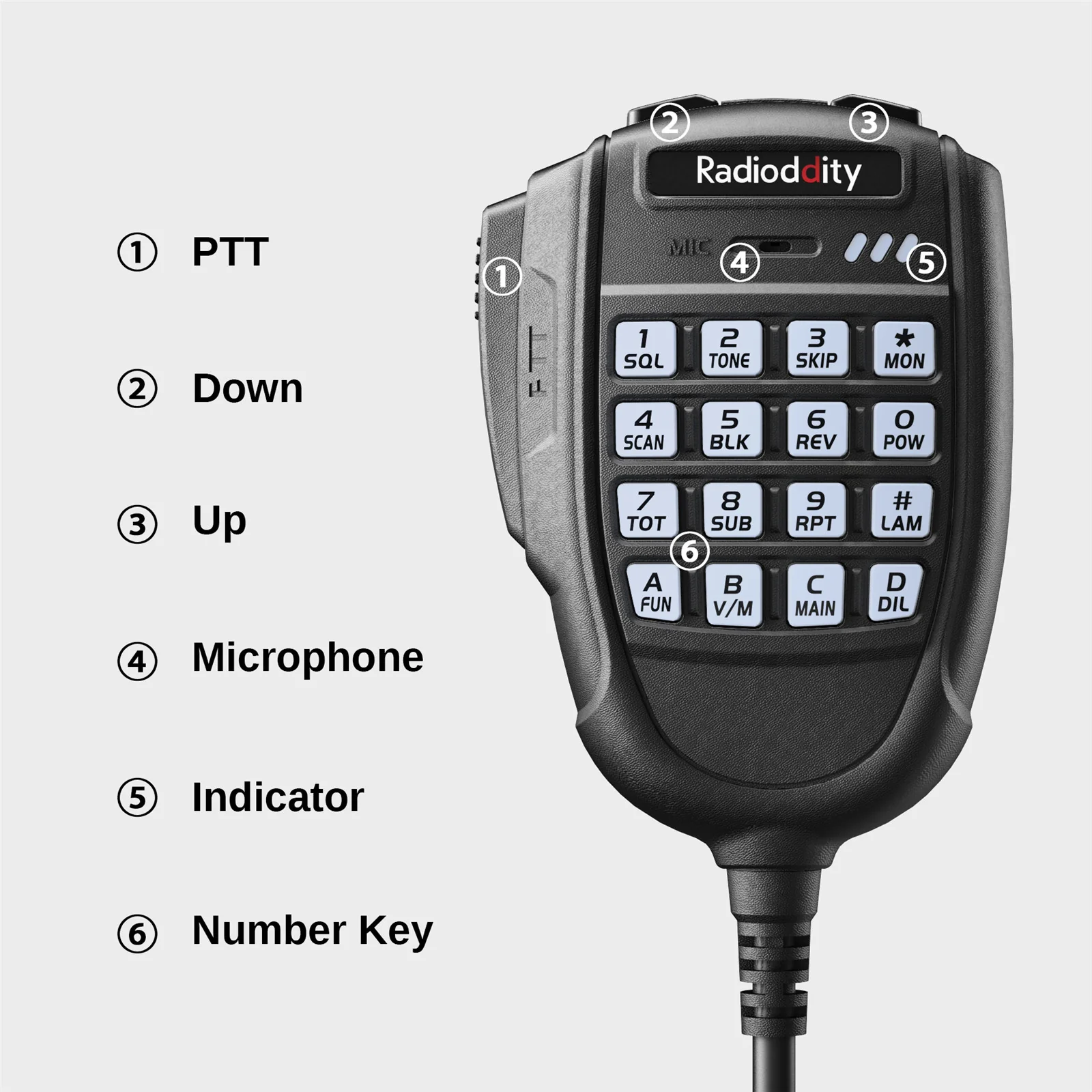

1 x Microphone
1 x Mobile Bracket
1 x Programming Cable
1 x Mic Holder (with 2 screws)
1 x Fuse(10A 250V)
2 x Bracket Screw
2 x Non-slip Mat
2 x Pads
2 x Fixing Screws
